Monitoring Hardware Sensors in different locations

Hello all,

I have a question about the best way to handle monitoring devices in different locations and sending alerts to different staff depending on the location. I have added a custom property called "facility" to each of the nodes. I have set up separate alerts for each facility. Under each alert, I have set the scope of the alert to be the "Node -> Facility" is equal to <facilityName> so that the alert will only trigger on those particular devices at that facility. My question is, however, is this the best way to accomplish this? If so, how do I separate the alerts for interfaces and for hardware components? On interfaces, if I select the scope to be "Node -> Facility = <facilityName>" I do not get any devices returned. Is there a way to traverse up the chain to pull information from the node that contains the interface when creating the scope? Should I be doing this a completely different way? Let me know your thoughts.

Find more posts tagged with

Alerting

Alerts

Accepted answers

mrxinu

Ah, there you go. Your trigger condition has to be changed from AND to OR. You can't have a status of both Warning AND Critical.

Steven W. Klassen

Programmer Analyst @ Loop1 Systems

http://www.loop1systems.com/

http://www.linkedin.com/in/mrxinu

All comments

mrxinu

You're doing it the correct way - I don't know why you're not getting any interfaces back unless you're adding more to the scope than just the custom property value. Can you send a screenshot of your custom property values and the trigger scope/condition?

Steven W. Klassen

Programmer Analyst @ Loop1 Systems

http://www.loop1systems.com/

http://www.linkedin.com/in/mrxinu

sboone2642

See the attached screenshots. Hopefully that will explain better than I can describe. If I alert on a Hardware Sensor (or an Interface, etc), I cannot set the scope of the alert so that Node->Facility = <facilityName>. It does not return any nodes in the scope.

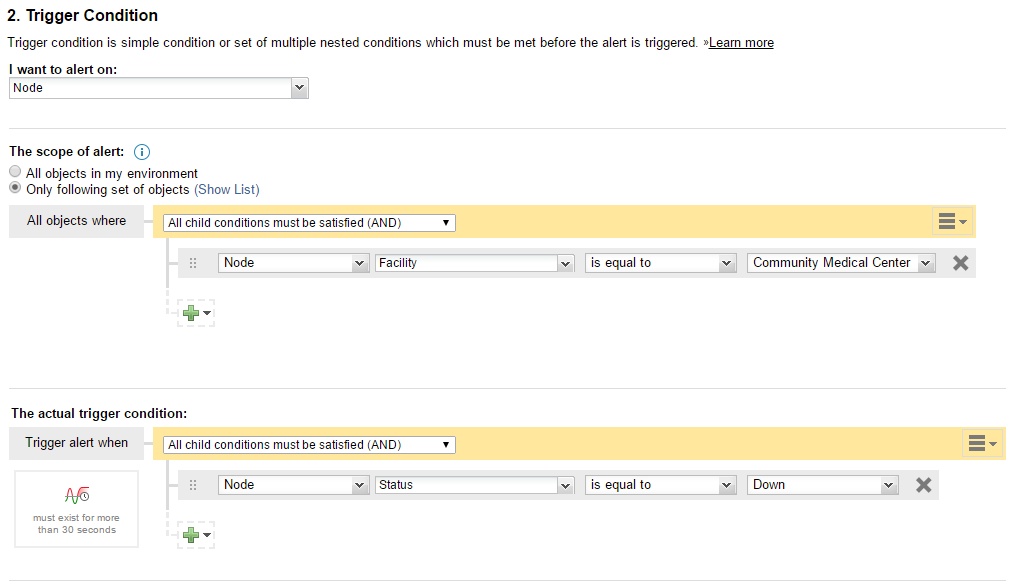

The following alert works as expected. I am alerting on a Node, and can therefore set the scope to the custom property of the node.

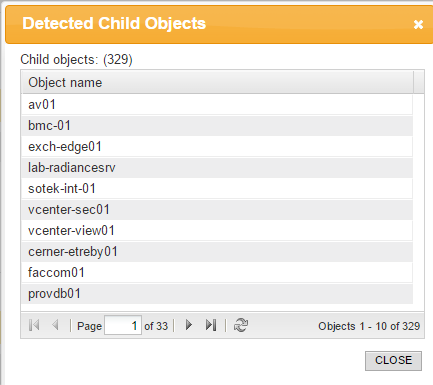

And when I click on "Show List" under the scope, I see this:

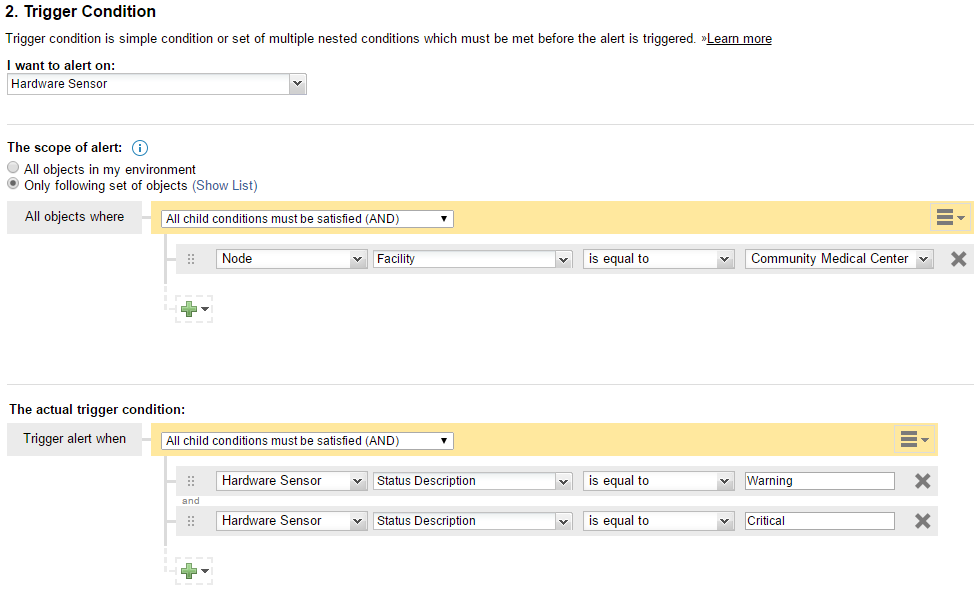

If I set the alert to alert on a Hardware Sensor:

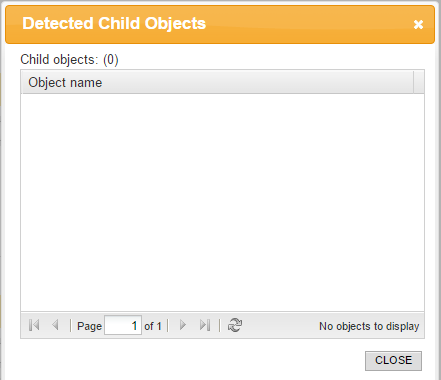

"Show List" returns nothing:

So I guess my question is, should I be alerting on "Hardware Sensor" or is there a better way to drill down? Is there a different way I should be doing this?

mrxinu

Ah, there you go. Your trigger condition has to be changed from AND to OR. You can't have a status of both Warning AND Critical.

Steven W. Klassen

Programmer Analyst @ Loop1 Systems

http://www.loop1systems.com/

http://www.linkedin.com/in/mrxinu

sboone2642

I caught that just as I was posting it too. I changed it and got flooded with alerts! (Looks like Cisco changed the way the 3850 switches report temperature compared to older models).

Thank you for your help! I appreciate it.
