Using a multiple line script in NCM

Hello all,

I wanted to ask about a small issue that I ran into some time ago with using a multiple line config script (text file). I wrote a script to change switchports in a stack group. I ran a test before trying to schedule the script but I noticed only ports on the master member in the stack (g1/0/1-48) were changed. The remaining ports on member switches 2 and 3 were not changed. I've gone through the NCM documentation but there aren't any examples of running a script with multiple lines. Only examples are to push a single change. Are creating templates the answer to this simple problem? Or am I missing something obvious?

Thanks!

Find more posts tagged with

Accepted answers

All comments

cnorborg

Without more details its tough to figure out what might have gone wrong, can you give us an example of what you did and we might have more details?

That being said, you might be missing a better solution, my favorite part of NCM, the compliance portion.

The compliance portion of NCM is made to check configurations to make sure they comply to "standards" and if something is wrong about how they're configured, it can go an fix them.

Even better, quite some time ago they put in the ability to work with config blocks, of which the intended use was for working with all the interfaces on a box. You simply define the start of a block, which could be as easy as "^interface" (which means a line that starts with (^) the word interface, and the end of the block, and then your able to check within that block for making sure things are correct. AND, if they aren't, you can execute commands on that block to make it right..

Not great for little one time changes, but for keeping your configuration compliant, its great!

bwilson13

@cnorborg Thanks for the reply and insight! I should've given more details in my initial post. The config was putting all ports into authentication open mode.

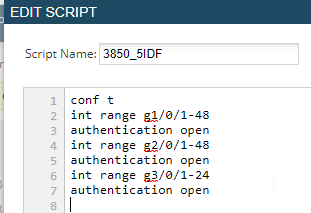

Text config was:

Previously we used Kiwi Cattools and using the above script worked. I know that it isn't a far comparison since there's so much more capability within NCM.

cnorborg

Hmm... All I can think of is maybe put an extra newline before each "int range"? Or maybe an "exit" on a line on its own to get out of the previous interface range before starting a new one?

bwilson13

@cnorborg I know that you replied to this earlier in the year but wanted to resume the conversation about multi-line text scripts in NCM. I tried as you suggested add line between the int ranges and using exit also (I'm not sure if that exits out of the script or not). I do realize that you're not a Solarwinds employee but do thank you for providing your previous suggestions! It's somewhat frustrating seeing that if copy and paste these lines into the CLI, they take without issue. So I'm trying to determine why the simple text file isn't working on these 3850 switch stacks through NCM.
