One High I/O Alert, not Twelve

brentbo

Hello everyone,

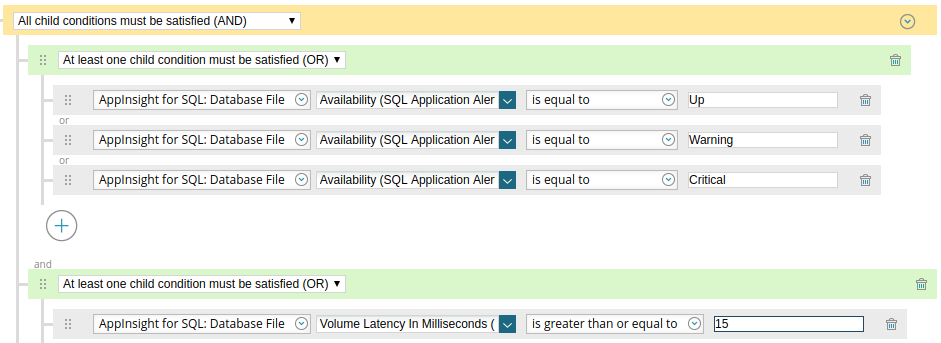

Implementing the Alert me when my database file disk i/o latency is high (see below) when volume latency rises to 15 milliseconds or above I get 12 alerts, one for each database file. Huh? I'm looking into advanced options for the alert but is this really that hard? I just want one alert. Anyone? Anyone?

Thanks!

tony.johnson

Hi,

As far as i see the alert is working as intended. Each of the 12 alerts you receive is for a specific database file which is on a volume which has a latency greater than or equal to 15ms.

I don't know if there is an easy way to get 1 alert here such as "Alert me when a volume which as AppInsight for SQL database files on it and its latency is greater than or equal to 15ms"

and provide the list of affected files..

As the volume entity does not have a latency attribute the closest i can get to right now is to use  a custom SQL query to alert on a volume which has AppInsight For SQL database files on it

WHERE VolumeID in (

SELECT        Distinct(Volumes.VolumeID)

FROM            dbo.Volumes INNER JOIN

                         dbo.APM_SqlBbDatabaseFileAlertsData ON dbo.Volumes.VolumeID = dbo.APM_SqlBbDatabaseFileAlertsData.VolumeID

WHERE dbo.APM_SqlBbDatabaseFileAlertsData.VolumeLatencyInMilliseconds >15

)

And as an added bonus you can also display the database files on the volume details page - (a little more work needed here on this to add some colors and link to the database details views)

if you browse to any volume in Orion and customize the page. Add a custom Table resource, use SQL as the datasource

SELECT        dbo.APM_SqlBbDatabaseFileAlertsData.FileName, dbo.APM_SqlBbDatabaseFileAlertsData.Size,

                         dbo.APM_SqlBbDatabaseFileAlertsData.VolumeLatencyInMilliseconds

FROM            dbo.Volumes INNER JOIN

                         dbo.APM_SqlBbDatabaseFileAlertsData ON dbo.Volumes.VolumeID = dbo.APM_SqlBbDatabaseFileAlertsData.VolumeID

WHERE volumes.VolumeID= ${volumeid}
