AppInsight for IIS for server in DMZ

Hi, I'm trying to setup the "AppInsight for IIS" application for one of our server that is hosted in DMZ zone (Web Server for Internet public connection), the server is behind an internal Firewall, I've already setup an internal server (LAN) about "AppInsight for IIS" application without any issues.

I don't think Firewall is the problem because I've setup the rule into the Windows Firewall (the server is a Windows Server 2008 R2) and into the internal Firewall.

However this is the error I receive:

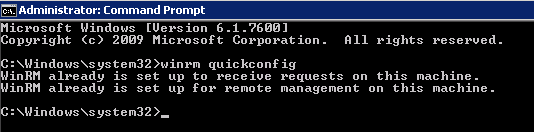

If I try the "winrm quickconfig" on the destination server:

Into the Windows Firewall I've setup the following rule in Inbound Rules:

I don't know what to check to fix this.

Thx, regards, Roberto.

Find more posts tagged with

Accepted answers

All comments

aLTeReGo

I believe the following thread discusses this topic in some detail. If after reading through this thread you still encounter issues, I would suggest managing the node using the Agent.

AppInsight for IIS

dalrmi

Thank you, I'm trying the "Configure Server" suggestion and it gives me the error about the "Unable to create the wsMan Listener (Error code: 16024)", in the log on the IIS server (RemoteIISConfiguratorPowerShell.log) I found the following:

##############

AGENTMODE macro: False

32-BIT: False

##############

INFO: PowerShell v2.0 or higher detected, continue system configuration ...

Windows Remote Management (WS-Management) service configuration results:

PowerShell quota management - 'MaxConcurrentUsers' current value: 0

Unable to increase PowerShell quota settings. ERROR: Value cannot be null.

Parameter name: value

##############

Cannot locate HTTPS listeners. Will create one...

##############

Solarwinds self-signed certificate exists:

Directory: Microsoft.PowerShell.Security\Certificate::LocalMachine\My

Thumbprint Subject

---------- -------

53381BC1BDB3A1224415563A3DE5794C775BF80E CN=XX.XX.XXX.XXX_Solarwinds_Zero_C...

Unable to create wsMan listener. ERROR: An internal error occurred.

How should I fix it ?

Regards, Roberto.

aLTeReGo

This error and its resolution is discussed in some detail in the following thread.

AppInsight IIS issues

There is also a KB article available at the link below which outlines how to resolve this error.

SolarWinds Knowledge Base :: AppInsight for IIS: Unable to create wsMan listener (Error code: 16024)
