Issue with Network Atlas map

Hi All,

In Network Atlas we've created a map and placed various NPM monitored switches on it.

Afterwards also the connections between them. The connection showed the Bandwidth Utilization in percentage fine in the NPM Orion webconsole.

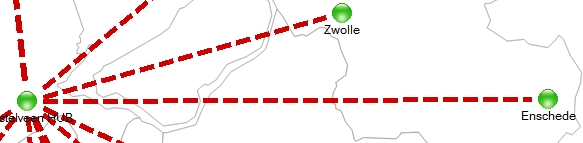

This worked fine yesterday, however opening the NPM Homepage today we see only red dotted lines with no Bandwidth Utilization percentage shown,

Network Map issue.png

Looking at the connection details, is says there is no connection between the nodes anymore

Connection details.png

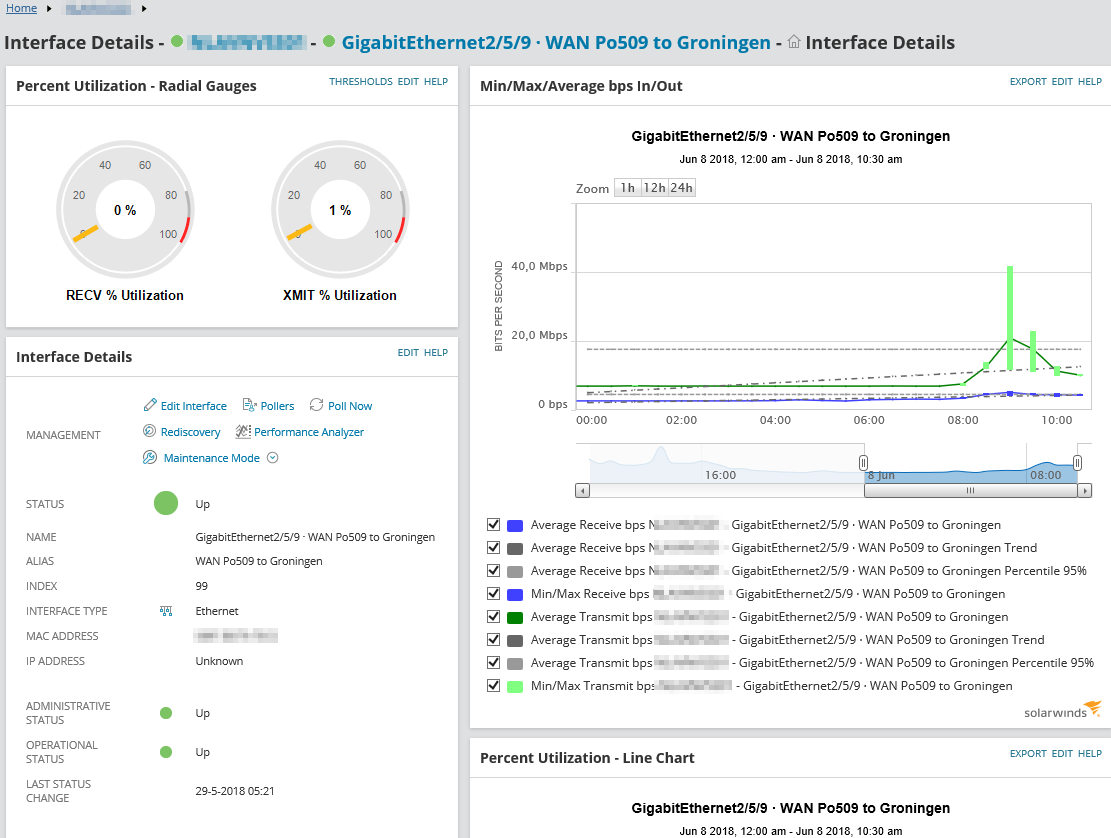

Clicking on any Interface details shows everything up and collecting performance counters etc,

Interface details.png

Does anyone know how to get the Map showing the Bandwidth Utilizations again?

Thanks in advance.

Find more posts tagged with

Looking at this for our setup as well, did you ever find an answer?
