Orion 11.5
Network Atlas 1.13.0.437
First, is this the latest version of Network Atlas?
Next, what am I missing here?
I created a map of 4 of our routers and did a connect now and let it put the links in place.

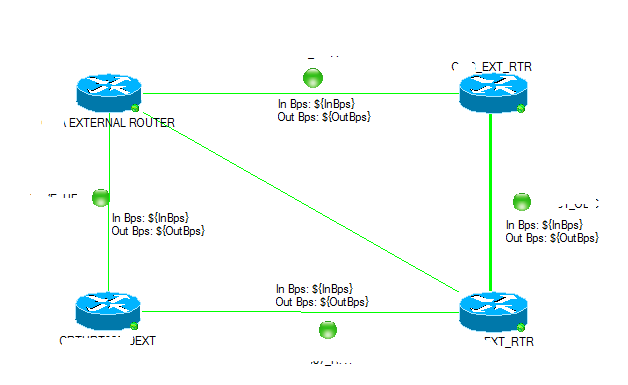

This is from Network Atlas
This is what it looks like in IE
Green lines make me think, hey, all links are up.....
So I then change it in NA to Link Speed

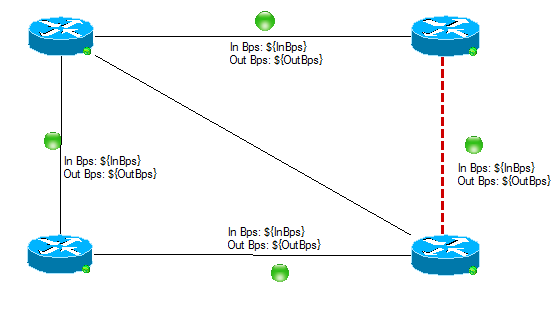

This is from Network Atlas

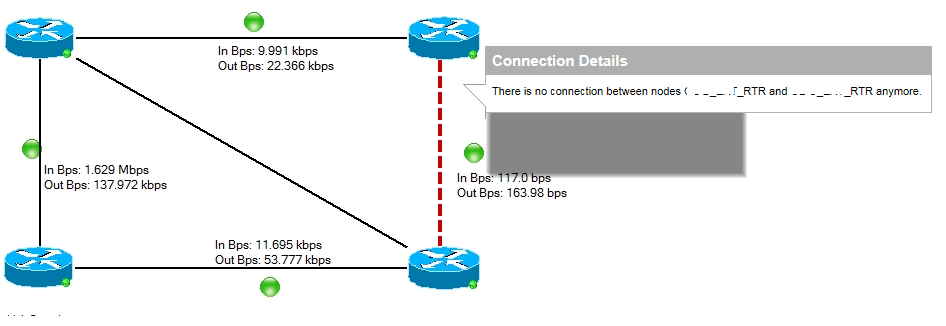

From IE
Why is the connection now showing gray/unknown or anymore??? Yet it is green in the first view.
What am I missing?
I would like to have NA show me a true representation of a link up/down status.
