Hello,
I just installed the demo of NTA. It looks pretty impressive, but I have one issue. I'm sure I've misconfigured something but Google isn't telling me where.

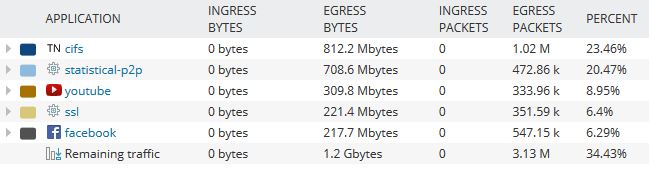

I can't see any ingress traffic, only egress.
Here is my flow configuration:
flow record NTADemo
match ipv4 tos
match ipv4 protocol
match ipv4 source address
match ipv4 destination address
match transport source-port
match transport destination-port
match interface input
collect transport tcp flags
collect interface output
collect counter bytes long
collect counter packets long
collect timestamp sys-uptime first
collect timestamp sys-uptime last
collect application name
!
flow exporter Netflow-to-NTADemo
destination 172.22.113.175
source GigabitEthernet0/0/1
transport udp 2055
template data timeout 60
option application-table timeout 60
option application-attributes timeout 300
!
flow monitor Netflow-Monitor
exporter Netflow-to-NTADemo
cache timeout inactive 30
cache timeout active 60
record NTADemo
!
interface g0/0/1
ip flow monitor Netflow-Monitor input
ip flow monitor Netflow-Monitor output
!
I've applied it both input and ouput to G0/0/1 which is my WAN interface, and G0/0/0.201 which is my Internet interface.
This is on a Cisco ISR 4321.
I tried applying it to all my LAN interfaces for "input" and applying to my WAN interface as "output" but the results were the same.
Any ideas why I'm not seeing any ingress traffic?
Tyler
