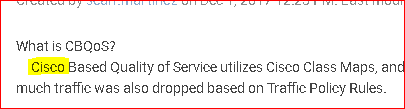

What is CBQoS?
Cisco Based Quality of Service utilizes Cisco Class Maps, and Traffic Policies Visually showing how all Protocols traverse a given link. CBQoS shows traffic before and after Traffic Policies have been applied showing how much traffic was also dropped based on Traffic Policy Rules.
What is a Class Map?
The grouping of Protocols or Applications for the ability to then apply the group to a Traffic Policy.
This is the most Granular and what each item is listed as in the image.
What is a Traffic Policy?
A collection of one or multiple Class Maps with basic grouping, or going one step further to Packet Police and Packet Prioritization.
Traffic Policies must be applied to an interface
Policy is applied to an Interface with a direction of input or output to show the Direction shown under CBQoS Details.
PURPOSE OF THIS GUIDE: Showing how CBQoS and Traffic Shaping. Visually showing the traffic per protocol to ensure that any link does not become easily saturated when a user chooses to move lots of data. The configuration shown is an example on getting data shown.
PREREQUISITE: NBar2 for the Protocol List. How To: Setup Cisco NBar2 to see what sites are accessed.
The Flow process: Create Class Maps, assign Class Map to a Policy Map, then use the Policy map name on the Interface and direction of the Interface.

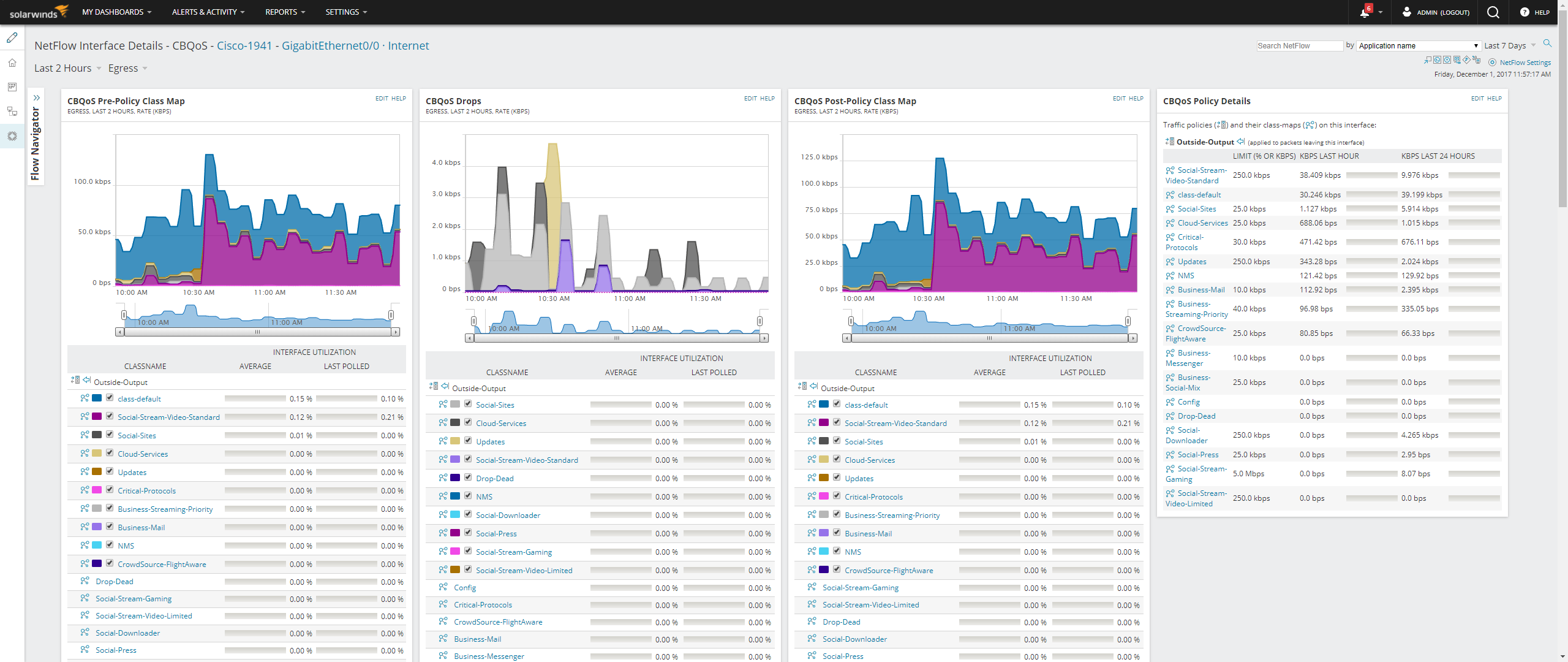

The Result of this setup:
Example Configuration:
CAUTION: Do not just take this example and implement. This configuration example is included to show how to segment traffic based on Protocols into different Class Map buckets; your network will most definitively will be different. If the network link is a WISP with less than 10Mbps, then this is perfect starter.
Create Class Maps:
Cisco IOS Quality of Service Solutions Command Reference - Class-Maps - Cisco
Go into Configuration Terminal
Start Creating and assigning Class Maps. I have created the following as an example:
Note: works for NBar2 protocol-pack pp-adv-isrg2-155-3.M2-23-27.0.0.pack
class-map match-any Drop
description Network should not send this data to the outside
match protocol active-directory
match protocol cifs
match protocol iscsi
match protocol nfs
match protocol netbios
match protocol adcash
match protocol aol-protocol
match protocol cnet
match protocol gotomypc
match protocol logmein
match protocol pcanywhere
match protocol rtelnet
match protocol showmypc
match protocol teamviewer
match protocol vnc
match protocol vnc-http
match protocol wifi-calling
class-map match-any Business-Mail
match protocol secure-smtp
match protocol secure-imap
match protocol secure-pop3
match protocol outlook-web-service
match protocol gmail
match protocol smtp
match protocol mapi
match protocol imap
match protocol pop3
match protocol activesync
class-map match-any CrowdSource-FlightAware
description Traffic to FlightAware Flight Data Servers
match protocol wunderground-com
class-map match-any Config
match protocol telnet
match protocol ssh
match protocol tftp
class-map match-any Social-Stream-Gaming
match protocol xbox-web-portal
match protocol doom
match protocol teamspeak
match protocol ventrilo
match protocol hamachi
match protocol twitch-tv
match protocol call-of-duty
match protocol playstation-store
match protocol playstation-web-portal
class-map match-any Social-Stream-Video-Limited
match protocol espn-video
match protocol flash-video
match protocol appleqtc
match protocol directv-catlg
match protocol directv-soft
match protocol directv-tick
match protocol directv-web
match protocol facebook-video
match protocol facebook-media
match protocol facebook-audio
match protocol icloud
match protocol itunes-video
match protocol itunes-media
match protocol itunes-audio
match protocol ms-streaming
class-map match-any Social-Downloader
match protocol bittorrent
match protocol bittorrent-networking
match protocol nntp
match protocol encrypted-bittorrent
match protocol encrypted-emule
match protocol ftp
match protocol ftp-data
match protocol ftps-data
match protocol xdtp
match protocol edonkey
match protocol fasttrack
match protocol gnutella
match protocol gopher
match protocol secure-nntp
match protocol kazaa2
match protocol novadigm
class-map match-any Social-Stream-Video-Standard
match protocol google-services-video
match protocol google-services-media
match protocol google-services-audio
match protocol netflix
match protocol amazon-web-services
match protocol youtube
match protocol internet-video-streaming
match protocol amazon-instant-video
class-map match-any Business-Social-Mix
match protocol google-earth
class-map match-any Updates
match protocol ms-update
match protocol windows-store
match protocol apple-ios-updates
match protocol apple-tv-updates
match protocol google-play
match protocol samsung
class-map match-any Critical-Protocols
description Needed to connect
match protocol dns
match protocol dhcp
match protocol dhcpv6-client
class-map match-any Business-Streaming-Priority
match protocol webex-app-sharing
match protocol webex-media
match protocol webex-meeting
match protocol adobe-connect
match protocol ms-lync
match protocol ms-lync-audio
match protocol ms-lync-control
match protocol ms-lync-video
class-map match-any Social-Sites
match protocol facebook
match protocol linkedin
match protocol http
match protocol secure-http
match protocol https
class-map match-any NMS
match protocol snmp
match protocol icmp
match protocol cdp
class-map match-any Social-Press
match protocol abc-news
match protocol accuweather
match protocol blaze-news
match protocol buzzfeed
match protocol business-insider
match protocol cbs
match protocol cnbc
match protocol engadget
match protocol fox-news
match protocol nbc-news
class-map match-any Cloud-Services
match protocol crashplan
match protocol dropbox
match protocol ms-ocs-file-transfer
match protocol skydrive
class-map match-any Business-Streaming
match protocol cisco-phone
match protocol cisco-jabber-video
match protocol cisco-jabber-audio
match protocol cisco-phone-audio
match protocol cisco-phone-media
match protocol cisco-phone-video
match protocol cisco-spark-audio
match protocol cisco-spark-media
match protocol cisco-spark-video
match protocol skype
match protocol jabber
match protocol jabber-audio
match protocol jabber-video
match protocol gtalk-voip
match protocol gtalk-video
match protocol dameware-mrc
match protocol citrix
class-map match-any Business-Messenger
match protocol cisco-jabber-control
match protocol cisco-jabber-im
match protocol icq
match protocol secure-irc
match protocol ip-messenger
match protocol xmpp-client
Create Policy Map:
Cisco IOS Quality of Service Solutions Command Reference - Policy-Map - Cisco
Policy Maps allow you to set Packet Prioritization, Police to limit how much it can use then set a priority, or drop traffic as some of the few examples. The link above will go far more into detail.
In Configuration Terminal under the (Config) Area, create a Policy Map. Use the Name of the Class Map as Class <Class Map Name>
policy-map Outside-Output
description Traffic on Outside Interface Leaving Network
class NMS
set dscp default
class Config
set dscp default
class Drop-Dead
drop
class Critical-Protocols
priority 30
class Business-Mail
priority 10
class Business-Messenger
priority 10
class Business-Social-Mix
class Cloud-Services
class Business-Streaming-Priority
priority 40
class Social-Downloader
Class Social-Sites
class Social-Press
class Social-Stream-Gaming
class Social-Stream-Video-Standard
class Social-Stream-Video-Limited
class Updates
Assign Policy Map to Interface
Configuration Terminal
interface <InterfaceName>
service-policy <Input/output> <Policy Map Name>
(Required Step to see in NetFlow) Enable CBQoS in SolarWinds NetFlow:
Go into Settings> NTA Settings> Manually manage NetFlow sources and CBQoS Polling
Expand out the device, select the Checkbox under CBQoS for the Interface you Enabled
CBQoS data is polled using SNMP. Wait about 10-30 minutes for a good chunk of data to roll in.
