Problem with custom report - Can't graph multiple statistic data

mdecima

Hi.

i have NPM 10.6 and SAM 6.0.

im trying to build a custom report via the web interface, the objective is to graph in the same chart the same component for multiple nodes. For Example, i added a custom WMI monitor for Terminal Server Sessions.

The way i tried it was:

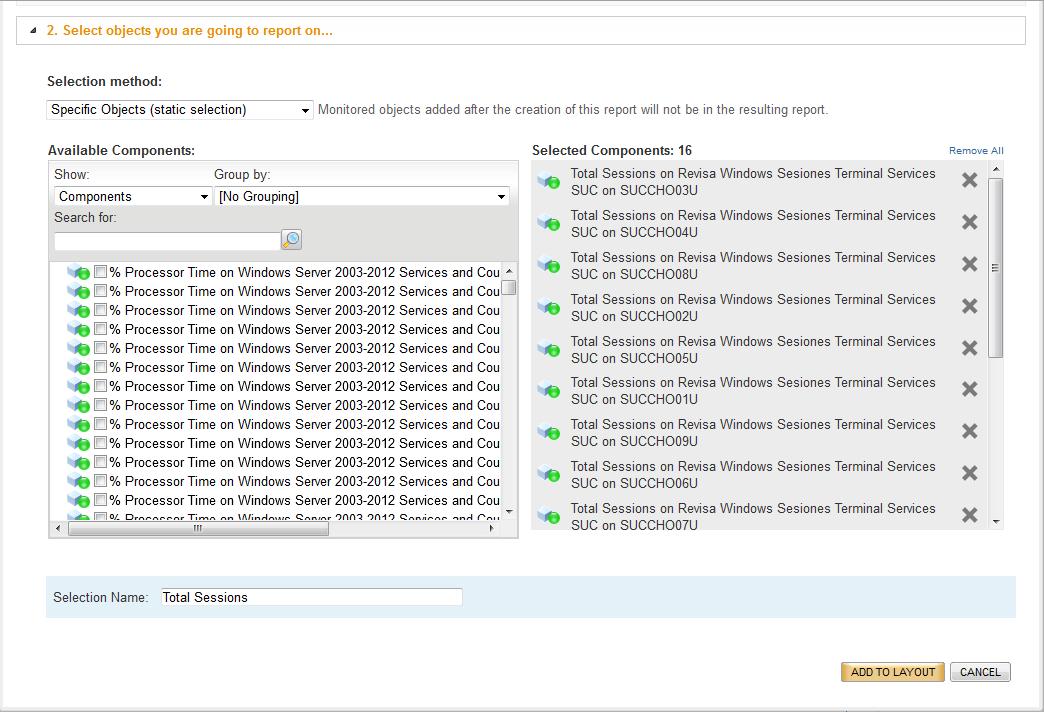

1 - Created a data selection pointing to the specific objects i wanted to report (Custom SAM Component)

2 - I added a Custom Chart and selected to graph "Average Statistic data"

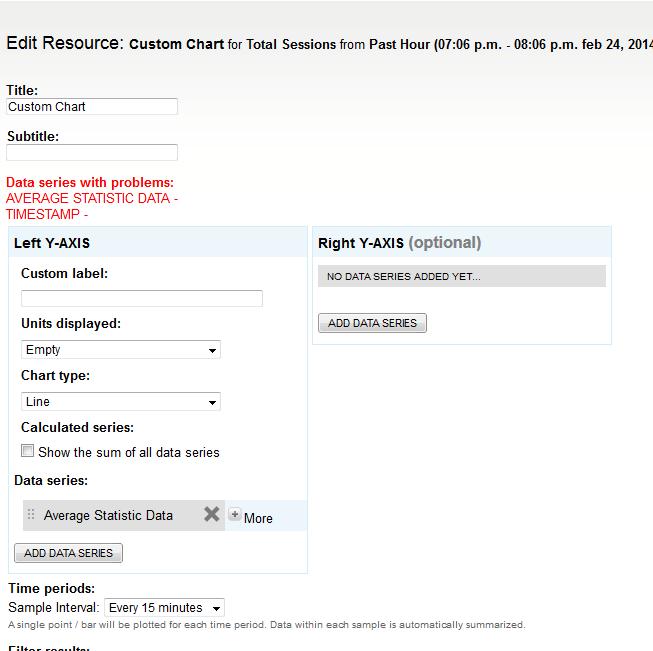

But the problem is that i get the error you can see in red Above.

The question is. ¿Im i doing it right? ¿is something missing? ¿Its npm/sam fault?

aLTeReGo

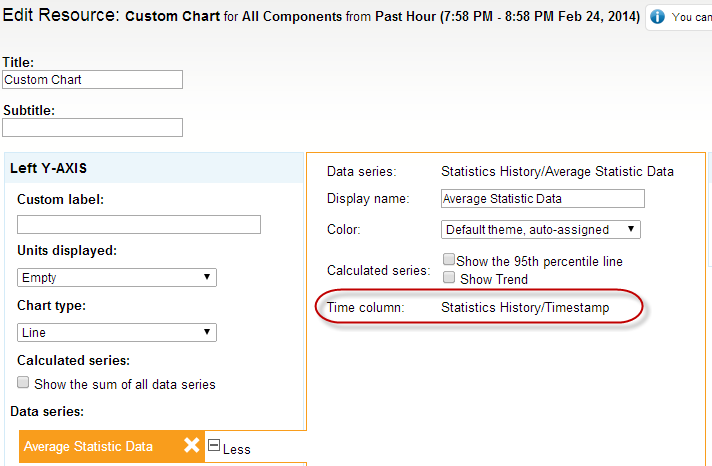

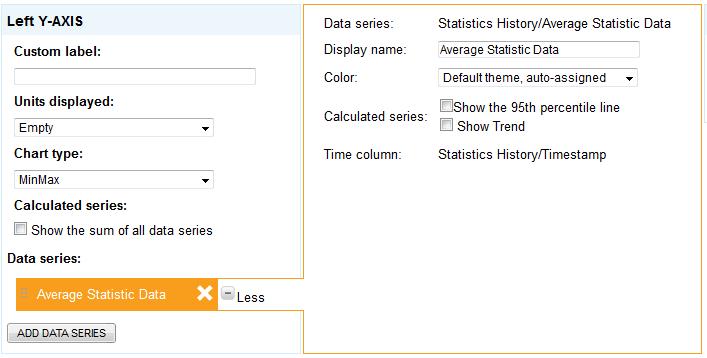

I'm not able to reproduce the error you're seeing, but from what I'm able to discern from the error is that the linkage between the statistic data and the time stamp when it was collected has not been defined. This should be automatic, but for some reason it doesn't appear to be in your installation. This could be a difference between 6.0 and 6.1 (which I'm using in my attempt to reproduce) or it could be a subtle difference in how the report was created.
