how do i get the new maps to show port channel interfaces instead of individual interfaces separately?

cathsheh1

I am currently making up new maps for my organization, and i noticed that the map auto-generates the links like it should..

the problem is we have our fiber links in port channels, so the through put is not showing up accurately as it is only showing up as a single link instead of in the port channel..

is there any why to fix this...if it was a link that I created I know i can delete this and re-configure, but since this is an auto-generated link this I can not delete it...

I have tried to un-monitor the fiber interfaces and only monitor the port channels but then it only shows up as "unknown" (so that did not work)

Any thoughts would be greatly appreciated

thx

jblankjblank

cathsheh1 This is a great question and one that we have heard come up more recently as people being to really use Orion Maps.  For now, when there are multiple connections between two entities, there is a hierarchy established based on worst status.  In our discussions with customer, many of them wanted to eliminate noise and simply show the offending items when there is a problem.  This is the point of the consolidated roll up.  I am discussing other alternatives with jason.carrier as its the NPM audience that is looking for a different representation.

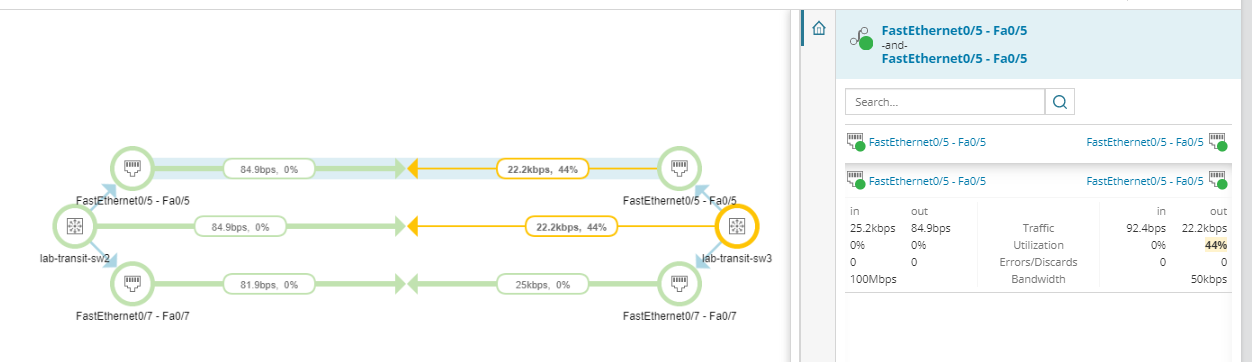

My suggestion for the moment would be to add the interfaces that you are wanting to see from both sides of the link to the canvas.  This would allow you to see the individual connections along with the status roll up connection between the two entities.  It would look something like this.

and I then manipulated data to show what it would look like if there was an issue.

Not perfect, but hopefully helps.  This would be a great feature request and we would be interested in how you would hope this could be visualized and what options you need to be able to do so.
