CPU Utilization is not displaying correctly (Ciso ISR4451)

Hi,

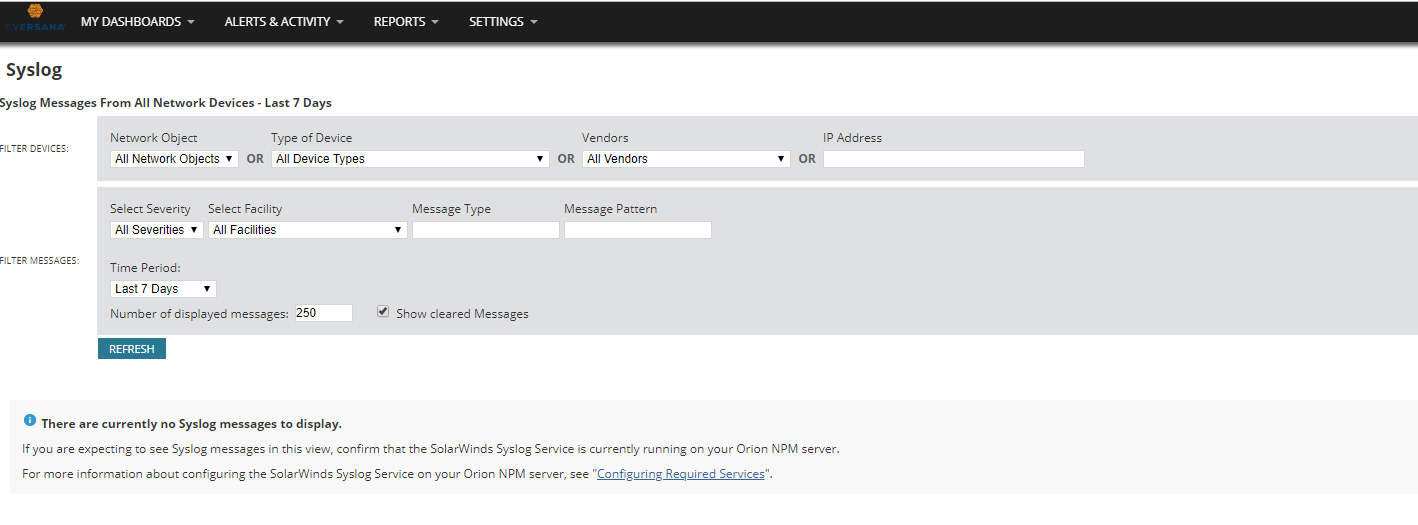

I'm hoping somebody can help me with this, I've been wondering why my Cisco ISR4451 (Cisco IOS Software, ISR Software (X86_64_LINUX_IOSD-UNIVERSALK9-M), Version 15.5(3)S2, RELEASE SOFTWARE (fc2)) is not showing the correct CPU utilization in NPM. Yesterday, there was an instance wherein the CPU reached 100% but in Orion, it shows only 8-9% peak contrary to what the actual router is saying, for some reason the NHRP process on this router burst maxing the CPU so I needed to reset the process, but I never got an alert in Orion and when I checked in NPM the utilization did not peak to 100% that's why it did not alert. I'm already using the custom device poller on this post: Cisco ASR Showing 95% 98% Memory Used.

Find more posts tagged with

Accepted answers

All comments

jlim13

Anybody who would like to take stab on this? Appreciate any assistance, suggestion or recommendation the community can share.

Regards!

amarnath_r

We have this issue in 11.5 and after upgrading to 12 it seems to be fine now.

cgregors

This is a common problem but if you dissect it a little it will make sense

The Cisco graph which is derived from on-board CPU load history shows the spike
The Orion graph which is derived from SNMP gathered history shows a data gap.
When the Cisco device goes to 100% CPU, it's too busy to respond to SNMP queries from Orion and thus there is no data point to graph
When the CPU comes out of 100% utilization, SNMP can reply to Orion and you get data points again

Observation: The rising and falling edges of the Orion graph should line up with the device going into and coming out of 100% CPU utilization.

Observation: This is not Orion or Cisco version dependent.

Solution 1: Increase the SNMP timeout for polling this device (All devices would be a bad idea). This MAY give SNMP time to reply to Orion.

Solution 2: Write an alert that triggers when a device returning valid data points. This is the UNKNOWN state.

Chris
