How to Setup NPM alert for Hard Drive low disk space only, not for RAM

Hello,

I'm trying to setup alerts for Hard Drive low disk space only, but I"m getting Ram and Physical memory alerts as well. I cannot find theway to separate in trigger condition hard disk volume and ram volume.

Thanks,

Find more posts tagged with

volume capacity

drive alerts

network performance montor

Accepted answers

All comments

zackm

In the scope of your alert, set it to something like this:

VolumeType BEGINS WITH Fixed

The full enumeration is actually "Fixed Disk" but there is a known issue where certain vendors will use "FixedDisk" instead of "Fixed Disk" (same thing happens with "Network Disk" btw)

Hope that helps!!!

-ZackM

Loop1 Systems: SolarWinds Training and Professional Services

LinkedIN: Loop1 Systems
Facebook: Loop1 Systems
Loop1 Twitter: @Loop1Systems
ZackM Twitter: @ZackM

ezikov

zackm No one of my Hard Drives: VolumeType BEGINS WITH Fixed, mostly they start: C:\ Label .... ; E:\ Label... F:\label: New Volume etc.......

Any Ideas, Thanks

ezikov

zackm No one of my Hard Drives: VolumeType BEGINS WITH Fixed, mostly they start: C:\ Label .... ; E:\ Label... F:\label: New Volume etc.......

Any Ideas, Thanks

zackm

You're confusing the Volume Name with the Volume Type. They are different columns in the database.Volume Type is an enumeration from the hrStorageType OID defined in RFC 2790 and has some distinct options for values (RFC 2790 - Host Resources MIB))

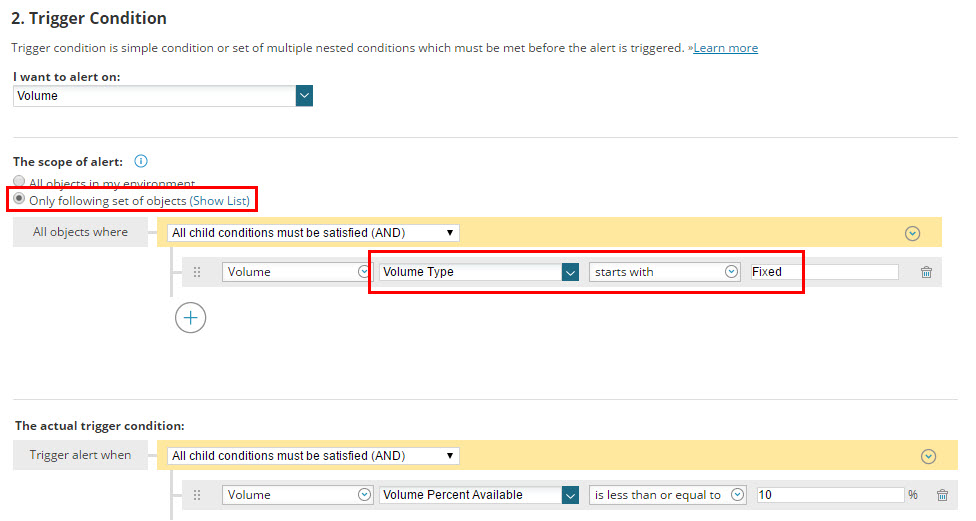

It should end up looking similar to this:

bluefunelemental

Side note- I always thought that was a Solarwinds module and not vendors issue. How would vendor mix up the enumeration across both snmp and WMI sources?

Thanks,

Christian

zackm

Gotta love those vendors

Re: Volume Type "Network Disk" versus "NetworkDisk"

ezikov

It worked, Thank you very much
