Help with OSPF "only" Neighbors Alert

I want to Alert only on OSPF ( ProtocolID='13)

NOT Neighbors in BGP

OSPF Neighbors is NOT Status FULL

Neighbors is a Node in NPM and not interface.

Node NPM status is UP

Something that look like that in SQL

where ProtocolID='13' and ProtocolStatus <>'8'

Can I do that without Adv. SQL ?

Have this one

WHERE

(

(Nodes.Node_Alarm_Type <> 'NO_ALARM') AND

(Nodes.Node_Alarm_Type <> 'N_SILENT') AND

(Nodes.Node_Alarm_Type = '24-7') AND

(Nodes.Status = '1') AND

( Node_Type='BBN-AS') AND

(NPM_RoutingNeighbor_V.ProtocolStatus<> '8') AND

(NPM_RoutingNeighbor_V.ProtocolID = 13)

)

the SQL is Okay but I dont see alert in that way.

Find more posts tagged with

‌what version of npm are you using?

‌Hi Stuart

Thanks for getting back to me

NPM 11.1

I will try to refine the problem.

have alot of pops (site) that i mange with help of OOB network.

some pop are dual redundant some are not.

I Need to find a away to know what type of peer down ( redundant or not)

some of the pop are "daisy chain" so you can make it hard to control becuase the last box in the ring may lose the route without any alarm.

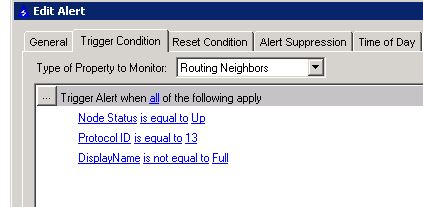

Your trigger condition should look like this

Also add your custom properties into the list

Hope this helps
