Backup Extreme Networks Switch Failing

Question

Hi, i'm having issues backing up my Extreme Networks B5 switch with Device.Backup.Running.Config script. Here is the debug file :

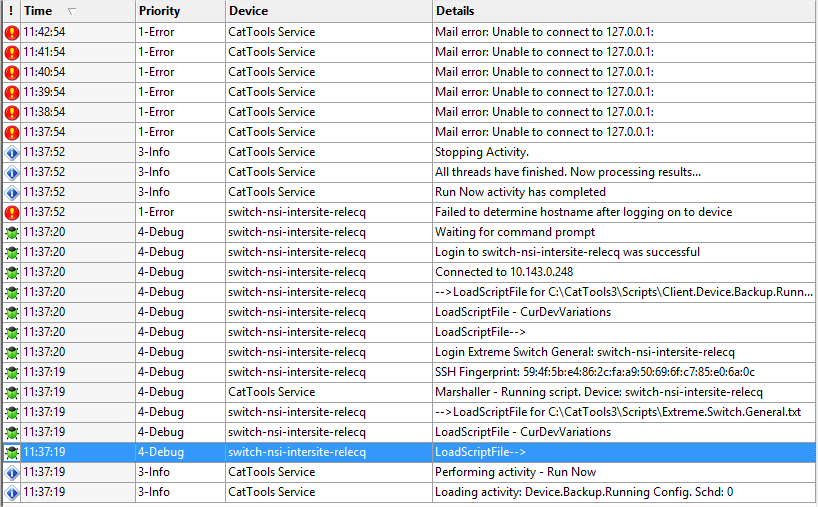

[13][10][13][10]Extreme B5 [13][10]Command Line Interface [13][10][13][10]Extreme Networks, Inc. [13][10]9 Northeastern Boulevard[13][10]Salem, NH 03079 U.S.A. [13][10][13][10]Phone: +1 603 952 5000 [13][10]E-mail: support@enterasys.com [13][10]WWW: http://www.extremenetworks.com [13][10][13][10](c) Copyright Extreme Networks, Inc. 2014[13][10][13][10] Chassis Serial Number: 15060732916E[13][10]Chassis Firmware Revision: 06.71.05.0008[13][10][13][10]Last successful login : WED JUL 26 11:24:37 2017[13][10]Failed login attempts since last login : 0[13][10][13][10]Stack Enterasys Baie Schelter Relecq intersite vers Gouesnou[13][10]switch-nsi-intersite-relecq(su)-> [13] [13][10]switch-nsi-intersite-relecq(su)-> ================================================================================ WFMDRetVal=1 Waiting for: " #" WFMDRetVal=2 Waiting for: " >" WFMDBuffer="[13][10]switch-nsi-intersite-relecq(su)->" ================================================================================ Device configuration : Info Log reports : Can you help me figure out how to get past this ? Do i have to change the prompt options ? thanks in advance

christophe_guengant · Answer

Problem solved ! I changed device type from Extreme Networks to Enterasys Securestack B and used variations to indicate which prompt to look for :

bkyle · Answer

CatTools is expecting # or >, but is getting switch-nsi-intersite-relecq(su)->.  Try adding this as the prompt.

christophe_guengant · Answer

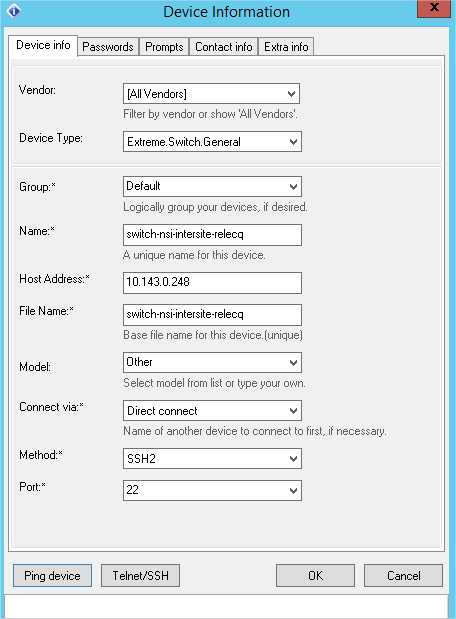

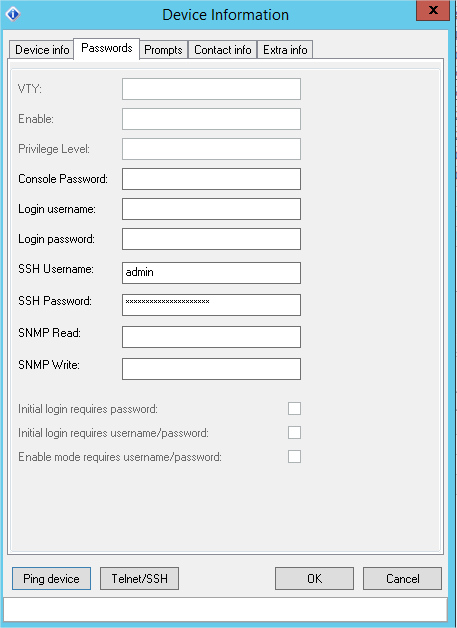

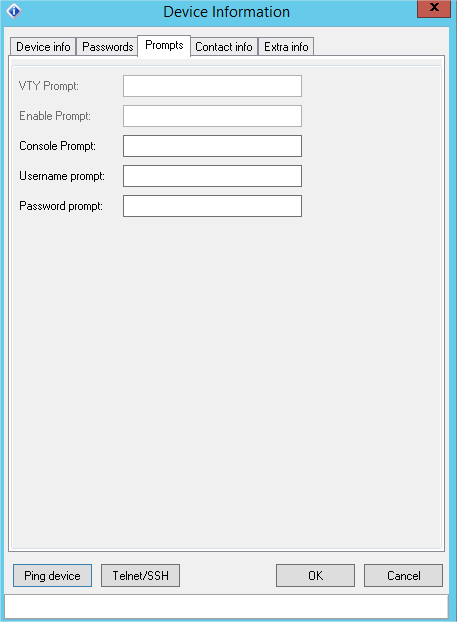

I don't have Variations tab :

can you explain to me how you can be sure it's that and not something else ?

i don't see any usefull information in the debug file.

Best regards
