Application Alert

bmcmcm

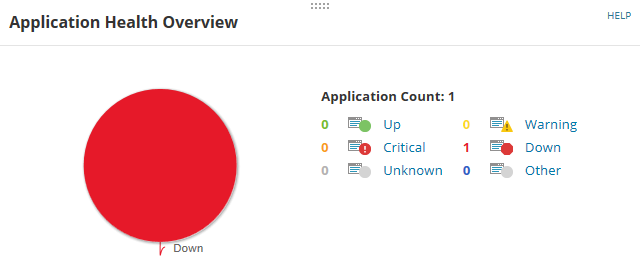

I've got a new application monitor with two components that are both down and never have been up. When I assigned the application monitor to a node, the application alert was never triggered. The application status shows grey, then eventually red about 5 minutes later and the node details show the "SAM application Down" under event summary.

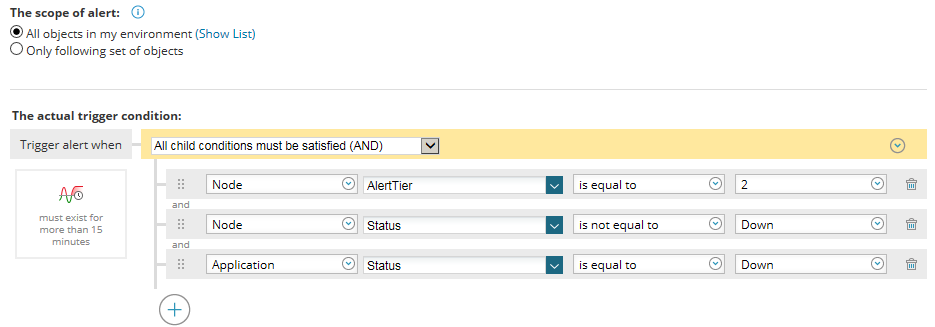

The alert trigger looks like:

AlertTier is a custom property and other application alerts are generated using it, so it works. The node's AlertTier property is set to 2.

Why isn't the alert being generated?

stephen.black

I could be mistaken but I think you have to use the status in numerical format. Give this a try. Status = 2 may mean it alarms if the status is reported as down. if that works, you can use any of the below status values to really refine the alerting.

Status values

When using the ${N=SwisEntity; M=Status} variable with a monitored object, status values are returned, as appropriate. The following table provides a description for each status value.

Status Value	Description
0	Unknown
1	Up
2	Down
3	Warning
4	Shutdown
5	Testing
6	Dormant
7	Not Present
8	Lower Layer Down
9	Unmanaged
10	Unplugged
11	External
12	Unreachable
14	Critical
15	Partly Available
16	Misconfigured
17	Could Not Poll
19	Unconfirmed
22	Active
24	Inactive
25	Expired
26	Monitoring Disabled
27	Disabled
28	Not Licensed
29	Other
30	Not Running
