Not Netflow

rcmagararu

Hi Guys need some assistance,

i'm not able to see netflow from our solarwinds.

i've already configured it in our routers.

interface GigabitEthernet0/0

ip address 192.168.1.3 255.255.255.252

ip flow ingress

ip flow egress

ip nat outside

ip virtual-reassembly in

duplex full

speed 100

no cdp enable

no mop enabled

bfd interval 500 min_rx 500 multiplier 3

Source(1) 192.168.1.3 (GigabitEthernet0/0)

Source(2) 100.65.0.30 (GigabitEthernet0/0)

Destination(1) 10.2.1.10 (9996)

Destination(2) 10.2.1.11 (9996)

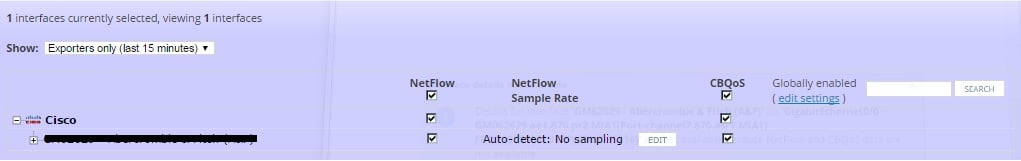

netlow 2.jpg

Find more posts tagged with

Accepted answers

All comments

ken_cohen

there should be Monitor and Exporter configurations in the router, can you list them?

rcmagararu

Yes,

ip flow-export source GigabitEthernet0/0

ip flow-export version 5

ip flow-export destination 10.2.1.10 9996

ip flow-cache timeout active 1

ip flow-cache timeout inactive 15

ken_cohen

Hi -

I think you're using the older syntax. Here's my configs for the flow record, flow exporter and flow monitor:

flow record SWR

match ipv4 protocol

match ipv4 source address

match ipv4 destination address

match transport source-port

match transport destination-port

match interface input

match interface output

collect counter bytes

flow exporter SWE

description SolarWinds Netflow

destination (ip address of the SW poller)

source Loopback1 (or whatever interface you want to use as the source)

transport udp 2055 (this may be whatever port number you prefer but must match with the NTA's port number)

flow monitor SWM

description SolarWinds Netflow

exporter SWE

cache timeout active 60

cache entries 1000

record SWR

BTW, there is no need to have the "ip flow" defined in the interface. All viable interfaces will show up.

Keep us posted!

Hock

The default NTA port is 2055. Did you update it to 9996?

Do also make sure that your firewall allow udp 9996 if you are going to use this port

rcmagararu

Thanks Guys, i will try this one and ill let you know.

Hock: yes we update it to 9996 and we allow it through firewall.

my our main issue is. we've enabled both netflow and CBQOS but only the CBQOS is responding but not the netflow

rcmagararu

Hi Guys,

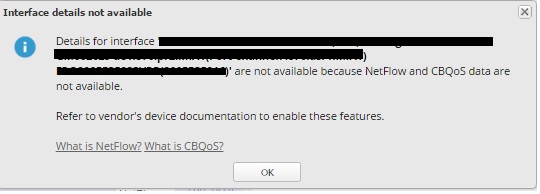

i've tried the new config for netflow but still i'm not getting netflow in the solarwinds

ken_cohen

Hmmmm.....

The fact that you are getting CBQoS data says that connectivity isn't the problem. Therefore, the problem must be in the configuration somewhere.

Would you mind posting the pertinent statements as currently defined? Edit the IPs, of course...

Hock

For our cisco model, we had to use "export-protocol ipfix" to get the netflow going.

superfly

Are you monitoring the node in Solarwinds as 192.168.1.3?

bartley

Is ever solved, because i see the same issue.

CBQOS is logged, but no netflow.

rschroeder

I recorded this process for my team to implement Netflow, and to migrate from NetFlow to NBar2 on our Cisco routers. Perhaps it will help you get it going in your environment:

Convert NetFlow to NBar2 on Cisco routers & L3 switches

Identify the Interface(s) on which to enable Netflow Nbar2.
Ex: routers usually use int Gi0/0 for the WAN
Identify the source Interface for sending Netflow--usually Loopback0
Identify the destination IP address of the appropriate NTA Poller/Orion server and record it for use in the configurations below

Use these commands on the router:
conf t
flow record NTArec
match ipv4 tos
match ipv4 protocol
match ipv4 source address
match ipv4 destination address
match transport source-port
match transport destination-port
match interface input
collect interface output
collect counter bytes
collect counter packets
collect application name
exit

flow exporter NTAexp
destination (enter in the IP address of your Orion poller, discovered & recorded above)
source Loopback0
transport udp 2055
export-protocol netflow-v9
template data timeout 60
option application-table timeout 60
option application-attributes timeout 300
exit

flow monitor NTAmon
description NetFlow nbar
record NTArec
exporter NTAexp
cache timeout inactive 30
cache timeout active 60
exit

interface GigabitEthernet0/0
ip flow monitor NTAmon input
ip flow monitor NTAmon output
exit

bartley

Tried this, without success. and i see the netflow if i do a wireshark. very strange.

rschroeder

I think perhaps it's time for you to open two support cases--one with Cisco TAC, the other with Solarwinds Support. Between them I'm confident that you'll have NetFlow working shortly.

bartley

I have already 1 open at solarwinds. I will try to open 1 with Cisco TAC.

Thanks

miller2529

I have basically the same setup and I was seeing all the NTA diagrams filling up with information (I also have a Cisco TAC case open and a SOLARWINDS ticket open) and I was happy but at the same time I got all the information showing up, it stopped showing all of a sudden and come to find out my other coworkers were working on the router at the same time to fix a VPN tunnel to one of our remote sites and the Cisco TAC person said the reason the VPN was having problems was because of some netflow statements I had and when those changes were made then some of my NETFLOW diagrams stopped showing information, so I am going back to the TAC notes to see if he noted what NETFLOW statements he changed or deleted.

rschroeder

Hopefully you are using Network Configuration Manager to track configuration changes on those tunnels. If so, it will be a very easy two clicks to see what changed. Then you can copy the original configuration and paste it back into the VPN appliance, and your Netflow information will begin working again.
