I am trying to integrate Cisco Nexus 5K switches with LEM as a syslog node, but having no luck. Does LEM support NX-OS? I found the attached, which was very helpful while integrating an ASA, but doesn't talk to NX-OS. Any help is much appreciated.
Hi Mike,

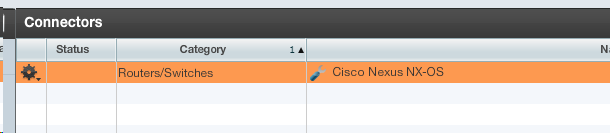

There should be a connector on your appliance that supports NX-OS logs:
If you follow the steps in the guide you attached, but simply apply the above connector, rather than the Cisco PIX & IOS connector mentioned in the guide, LEM should then pickup the Nexus logs.
Any problems/questions let me know
I did as you suggested. The syntax is a little different for NX-OS, so maybe you can double check me. I SSH into my switch and added the following commands:
logging server x.x.x.x (my LEM IP) 7 use-vrf management facility local2
logging level local2 7
In LEM, I added a new connector called Nexus5K (real original) and edited the Log File to be:
/var/log/local2.log
I then started this connector and it turned green and I did not create a filter.
I then scanned for new nodes and I get "No Connectors Found"
Am I missing something?
Thanks for the help!
Mike
I'm not overly familiar with the NX-OS, but the 'logging level local2' looks incorrect. It should be set to a level as outlined here.
Can you also use the checklogs tool within LEM to confirm that the NX-OS logs are actually hitting local2. If the connector is not detecting NX-OS logs in local2, it sounds like the logs aren't actually getting to local2.
If you SSH into LEM (or you can go via the VM console), then follow these steps:
cmc>
appliance
cmc::acm#
checklogs
According to the Cisco Nexus 5000 NX-OS Software Configuration Guide, Chapter: Configuring System Message Logging, the default outgoing facility is local7.
I have changed all references from local2 to local7. I also edited the LEM Log File to /var/log/local7.log.
Still getting "No Connectors Found" when I scan for new nodes.
SSH into switch and do command "show logging info", I see the logging server is enabled and IP address of my LEM server, server severity is debugging, server facility local7, but it also says "this server is temporarily unreachable." However, I can ping from switch to LEM server and vice versa no problem. Checked logs on LEM (cmc::acm# checklogs) and they are empty, so logs are in fact not getting there. The LEM server is a VM, but the VM Host is directly connected to the switch I'm trying to send syslog from. Do I need to edit IP Tables in LEM or something else?
