Event history of Availability group failover

Hi,

I'm running DPA 11.1.457 and that versions add some added support for Availability groups in SQL server.

I was wandering if I could see within DPA some annotations on AG failover. I can see in Resources if a vm vmotion's beteween hosts. But can I somewhere see if the SQL server becomes active on another node in the availability group?

regards,

Johannes

Find more posts tagged with

failover.

availability group

AlwaysOn

Accepted answers

mandevil

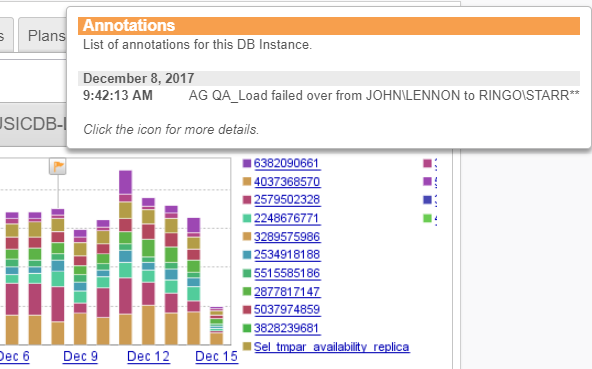

In my Trend view, see the auto-annotation of when a failover occurs for your AGs.

You'll see a similar notation within your environment. You can also set up an alert to notify you when a failover happens.

Then you can also look at alert history to see when those events occurred.

All comments

mandevil

In my Trend view, see the auto-annotation of when a failover occurs for your AGs.

You'll see a similar notation within your environment. You can also set up an alert to notify you when a failover happens.

Then you can also look at alert history to see when those events occurred.

johannesk

Thanks Mandevil. That's exactly what I was looking for. Really good to know.

johannesk

I'd like to add since I just discovered something related to this question of mine.

options - administrations,

there under diskplay, go to annotations

Choose the database instance, and get a list of all anntations in a table for that instance, including the AG failover annotaions.

jaminsql

Good find. Just to provide a few more items for others that might read the thread on this one.

Annotations will be created automatically for the following cases:

Listener Failover
Monitoring the listening and an AG role changes and the primary replica changed
Monitoring an instance and an AG role changes and the primary replica changed

The user can disable this feature by setting the optional parameter AG_EVENT_ANNOTATIONS_ENABLED to false.This is in Options -> administration tab -> Advanced options -> in system options tab for global and in DB instance options if you want it off in only one instance.

events will be stored in the CON_ALERTABLE_EVENT table with the "DETAIL" column containing JSON data about the event. This table by default will keep 30 days of history which will be configurable by "CLEAN_DAYS_OF_CON_ALERTABLE_EVENT" parameter.

Example JSON of a AG Status Change event:

[

</code><code>{"name": "ag_id", "value": "3CD9A1F0-3D76-46CC-9FB4-44A3194D28F6"},

{"name": "ag_name", "value": "MusicDB"},

{"name": "primary_replica ", "value": "John\Lennon"},

{"name": "old_status", "value": "NOT_HEALTHY"},

{"name": "new_status", "value": "PARTIALLY_HEALTHY"}

]
