How to Create Hourly Bandwidth Usage Reports in NPM?

jhonnmonak

Hi all,

I’m trying to set up a report in NPM that shows hour-by-hour bandwidth usage for a few key interfaces on our core switches. I’ve played around with custom reports, but I can't seem to get a clean hourly breakdown — it keeps aggregating by day or minute.

Ideally, I’d like a graph or table that shows bandwidth in/out per hour over the past 24–48 hours. Has anyone here built something like that or found a reliable way to do it?

Would appreciate any advice, report definitions, or even SQL examples if needed.

Thanks!
Jhonn Mick

Lofstrand

Hi

Should be doable without any custom SWQL.

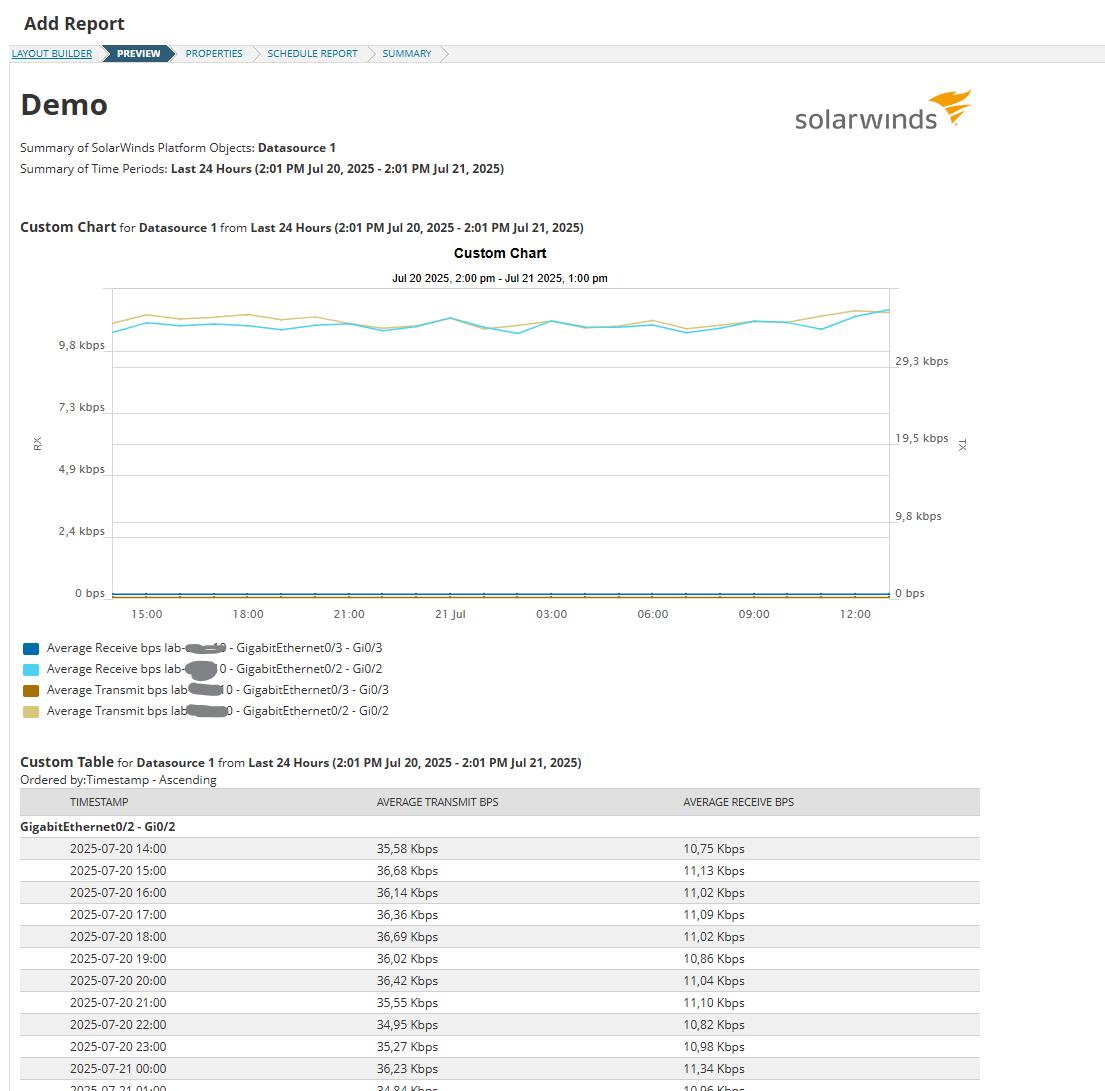

Here is a report of just two example interfaces. Both graph and table.

If that looks ok to you, these are a couple of key settings:

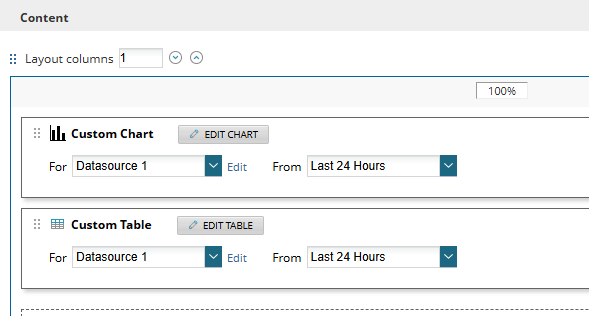

Having the "from" value to the wanted timespan. 24h in my case

Set the time periods for sample intervall on the graph to "every hour":

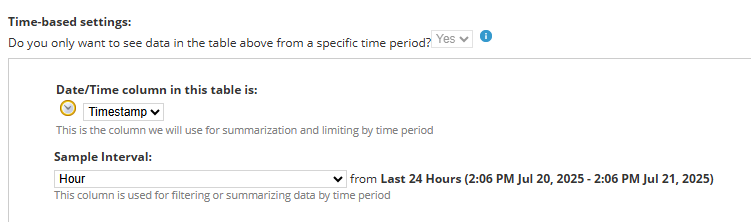

And on the table, set the "sample intervall" to "hour":

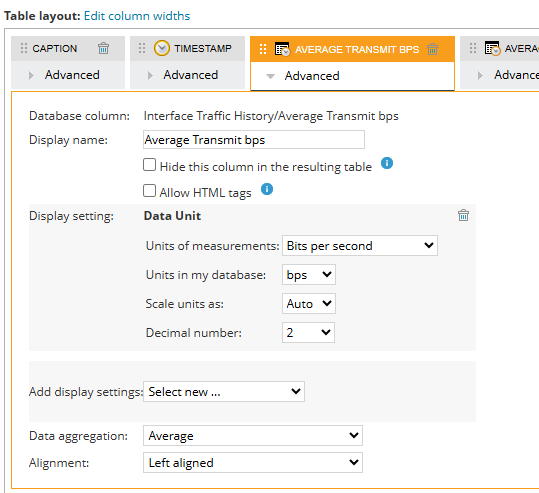

On the columns for receive and transmit bps, choose "data aggregation" to "average":
