Not able to see the interface utilization % field in the interface traffic cur table

Hi,

We are unable not able to see the interface utilization % field in the interface traffic cur table under Orion database. Can some one assist me whether this field is available in the database or what needs to be done to get the utilization in %?.

We have capacity team and on daily basis they need to fetch the data and for this they require utilization in % field?

Thanks

Find more posts tagged with

Accepted answers

All comments

Daran

I think this is the older way of doing it but you can use these variables:

https://documentation.solarwinds.com/en/success_center/orionplatform/content/core-interface-variables-sw3455.htm

e.g. ${InPercentUtil} and ${OutPercentUtil}

Or something like this:
Interface ${NetObjectName} on ${NodeName} received at ${Interface.InPercentUtil}% of its utilization

Shanmuga

Hi,

Capacity team needs to fetch the interface utilization in % for all the network devices as they will write the code in their tool. They need to pull the utilization % for an interface so we gave this table - [SolarWindsOrion].[dbo].[InterfaceTraffic_CS_cur] but we dont see the util % so the question is in the orion database do we have the bandwidth util% field?

Daran

These look to be all of the fields for "in" utilisation":
SELECT TOP 1000 * FROM [dbo].[InterfacesInPercentUtilization]

and similarly for "out":
SELECT TOP 1000 * FROM [dbo].[InterfacesOutPercentUtilization]

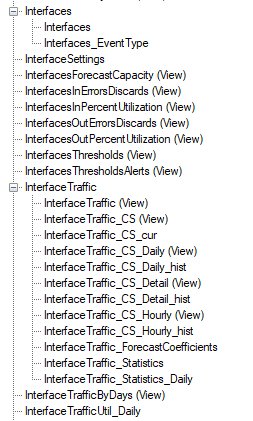

Or just get them to explore these tables:

Hope that helps.

Daran.

Shanmuga

Thanks Daran.

So the above listed are views correct? I don't see the tables associated to the view for the utilization so in this case we need to go for the views instead of the table.

I checked the utilization view but it doesn't have the timestamp field? They need the utilization % for each interface of each device with the timestamp so how would we achieve this?.

Thanks

mapujece

To monitor your interface utilization effectively using the Orion database, you’ll need to calculate the percentage manually since the database doesn't provide it directly. The traffic data is stored in bits per second, so you must query the InterfaceTraffic or InterfaceTraffic_Detail table and join it with the Interfaces table to get the speed of each interface. From there, calculate utilization with a formula like (Averagebps / InterfaceSpeed) * 100. This will allow teams like your capacity planners to get accurate daily usage metrics. Just like planning the perfect DJ Hochzeit Karlsruhe event requires matching the right music to the crowd, getting accurate network stats takes a tailored, precise approach.

Shanmuga

Thanks. So they have to fetch the as polled data for one interface and calculate it with utilization in % and use it to their dashbaord? by this way they can get 288 rows for 24 hours data for one interface. Is this ithe only possible way ?

I noticed utilization % field in the other table why the product not created such field in the interface traffic cs cur table ? How about considering feature enahncement to implement this?

Please share your thoughts

Thanks.
