DPA How to Create an Alert When the DB Instance Monitor is OFF

danglenn

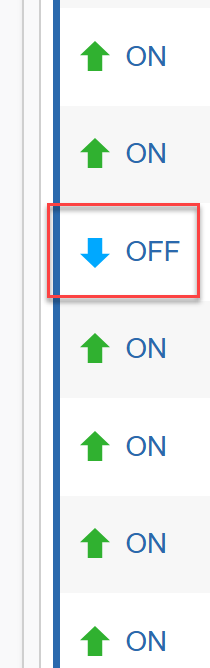

Is there a standard alert that informs the administrator when a DPA monitor is OFF or unresponsive? Or is it possible to create an alert that will effectively monitor the monitors?

HiThwack

I was also attempting to figure out a way to add this alert, and it took me a while to figure it out.

Here is what I had to do in the end to figure this out.

Method 1: I used this first but did not like it.

Run a query against the dpa repo to see if any database is in a state that is not "start". I didn't like this method because you cannot join on the #DBID# since all alerts stop for a db if it is not in a START state. If you did join on #DBID#, the alert would never trigger.

So, for this method, I had to:

• write the query without the join on #DBID#
• create the alert and only assign ONE instance to it, any instance
  • if you assign multiple instances, it'll trigger once per instance, although one 1 db is unmonitored
• ensure you do not add the alert to any groups, keep it separate. Otherwise, it'll trigger multiple times; once per db in that group

This is the query I used here, quite simple:
SELECT
FailLog.CONTEXT AS Database_Name,
COUNT(FailLog.ID) AS Failure_Count
FROM ignite.CONLOG FailLog
WHERE FailLog.PRIORITY IN ('INFO', 'WARN')
AND FailLog.MODULE = 'DatabaseMonitor'
AND FailLog.MESSAGE LIKE '%failed to start%'
-- Time Logic: Entry is "within past 3 hours" BUT "older than 2 hours"
AND FailLog.LOG_DATE BETWEEN DATEADD(HOUR, -3, GETDATE()) AND DATEADD(HOUR, -2, GETDATE())
-- Exclude if it successfully started AFTER the failure
AND NOT EXISTS (
SELECT 1
FROM ignite.CONLOG SuccessLog
WHERE SuccessLog.CONTEXT = FailLog.CONTEXT
AND SuccessLog.MESSAGE LIKE 'Started monitoring database%'
AND SuccessLog.LOG_DATE > FailLog.LOG_DATE -- Must be LATER than the failure
)
GROUP BY FailLog.CONTEXT
HAVING COUNT(FailLog.ID) > 0;

Method 2: I love this method and it works perfectly.

Pre-req note: Solarwinds does not recommend monitoring your dpa databases with DPA.

Pre-req: Since there was no built-in method to do this simple check against the dpa repo, I used 1 license to add my dpa db into DPA. After adding, I disabled as much as I could for that database:

The instance assigned to this alert is the dpa database.

Here is the query I wrote to trigger this alert:
SELECT
FailLog.CONTEXT AS Database_Name,
COUNT(FailLog.ID) AS Failure_Count
FROM ignite.CONLOG FailLog
INNER JOIN ignite.COND MonitoredDB ON MonitoredDB.NAME = FailLog.CONTEXT
INNER JOIN ignite.CONLIC_INSTANCE_ALLOCATION License
ON License.CONSUMER_ID = CAST(MonitoredDB.ID AS VARCHAR(50)) + '|A'
WHERE FailLog.PRIORITY IN ('INFO', 'WARN')
AND FailLog.MODULE = 'DatabaseMonitor'
AND (
FailLog.MESSAGE LIKE '%failed to start%'
OR FailLog.MESSAGE LIKE '%username and/or password must be updated%'
OR FailLog.MESSAGE LIKE 'Monitor for database%stopped%'
)
-- AND FailLog.LOG_DATE > DATEADD(MINUTE, -60, GETDATE())
--AND MonitoredDB.ID = #DBID#
-- Exclude if it successfully started AFTER the failure/stop event
AND NOT EXISTS (
SELECT 1
FROM ignite.CONLOG SuccessLog
WHERE SuccessLog.CONTEXT = FailLog.CONTEXT
AND SuccessLog.MESSAGE LIKE 'Started monitoring database%'
AND SuccessLog.LOG_DATE > FailLog.LOG_DATE
)
GROUP BY FailLog.CONTEXT
HAVING COUNT(FailLog.ID) > 0;

Ensure you do not add the alert to any alert groups, keep it separate. Otherwise, it'll trigger multiple times; once per db in that group.

Alert Levels:

• High: Min = 1 , Max = blank | Notify group or contact then

I also wrote a custom template and assigned it to this alert (for Method 2):

Subject: DPA Alert: [=alert.alertName] - [=alert.status.value]

Body text:

<b>Alert:</b> [=alert.alertName]
<b>Database Instance(s):</b>
[#list alert.results as result]
• [#if result.parameterName??][=result.parameterName][#else]Unknown[/#if]
[/#list]
<b>Execution Time:</b> [=alert.executionTime]

[#if alert.notificationText?has_content]
<b>Remediation Steps: </b>
[=alert.notificationText]
[/#if]

<i>This message was system-generated. Do not reply to this message.</i>



Hope this works for you as well as it has worked for me.
