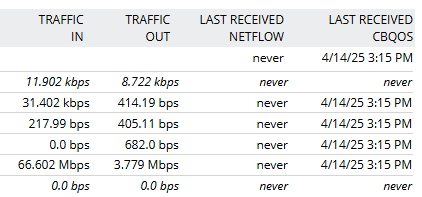

Here is what it is showing me when I look at the NTA summary, it is weird I see traffic in and out but not receiving NetFlow. The server seems to be good; I can ping/traceroute from the cisco Nexus9000 93180YC-EX chassis to the SolarWinds Server but still no pie charts are populating or anything.
Here are my configs:
Flow exporter Layer3-Exporter:
Destination: x.x.x.x
VRF: management (1)
Destination UDP Port 2055
Source Interface Vlan254 (x.x.x.x)
Export Version 9
Sequence number 957737
Data template timeout 15 seconds
Exporter Statistics
Number of Flow Records Exported 0
Number of Templates Exported 0
Number of Export Packets Sent 0
Number of Export Bytes Sent 0
Number of Destination Unreachable Events 0
Number of No Buffer Events 0
Number of Packets Dropped (No Route to Host) 0
Number of Packets Dropped (other) 9325473677
Number of Packets Dropped (LC to RP Error) 0
Number of Packets Dropped (Output Drops) 9
Time statistics were last cleared: Never
Flow record Layer3:
No. of users: 1
Template ID: 286
Fields:
match ipv4 source address
match ipv4 destination address
match ip protocol
match transport source-port
match transport destination-port
match interface input
match flow direction
collect transport tcp flags
collect counter bytes long
collect counter packets long
collect timestamp sys-uptime first
collect timestamp sys-uptime last
Flow Monitor Layer3-Monitor:
Use count: 4
Flow Record: Layer3
Bucket Id: 0
Flow Exporter: Layer3-Exporter
interface Ethernet1/3
description Router-01 g0/0/0
ip flow monitor Layer3-Monitor input
no ip redirects
ip address x.x.x.x/30
ip router eigrp 9
no ip passive-interface eigrp 9
no shutdown
If anyone sees something or have suggestions please let me know, thank you!
