Checkpoint VPN Status

Question

Hi experts,

i'm trying to monitor VPN tunnel from a checkpoint firewall.

i've used the OID 1.3.6.1.4.1.2620.500.9002.1.3

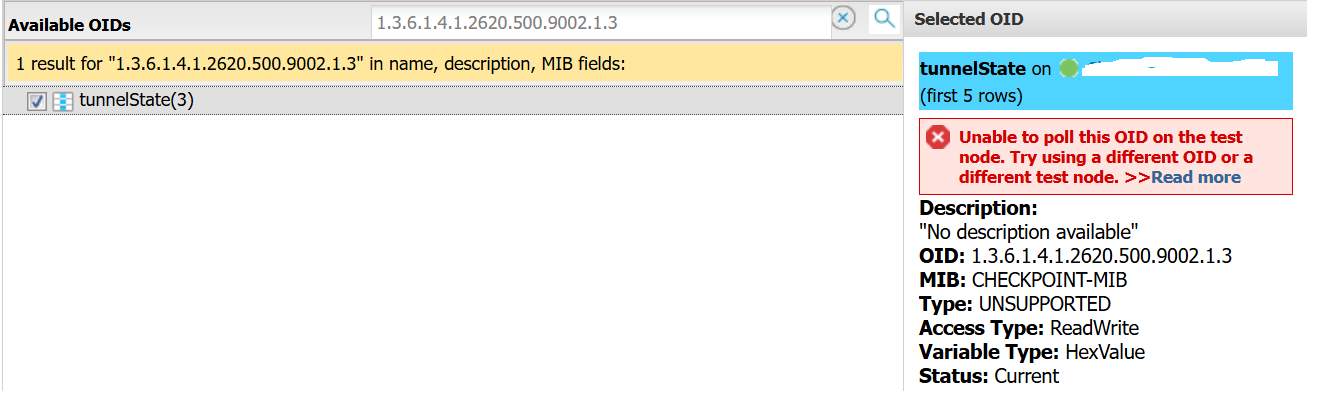

On the MIB Browser i got this result:

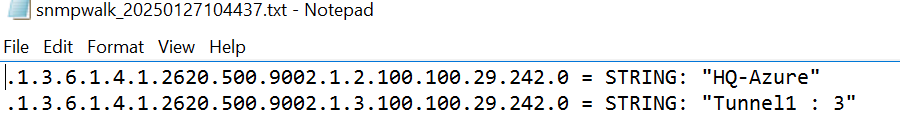

On SNMPWalk i can see this OID, but it has an IP after "1.3.6.1.4.1.2620.500.9002.1.3" like 1.3.6.1.4.1.2620.500.9002.1.3.100.100.29.242.0 = STRING: "Tunnel1 :3 "

Anyone got a problema like this?

mesverrum · Answer

You don't have to handle it, just set your UNDP to a tabular poller and it should be good to go.  Those IP's are just the "index" of the snmp table in this case.

victorg89 · Answer

I'm already in touch with the vendor, they are checking. While I don't have their feedback, I'm trying to find alternatives to monitor the VPN tunnel status. I haven't been able to think of any way to handle this IP address that is appearing after the OID.

vinay.by · Answer

Raise a case in that case with the vendor, SNMP Walk seems to work fine but not here is strange. I hope you are running SNMP Walk from SolarWinds Pollers where this device is added.
