One widget for multiple interfaces

Sriram_1

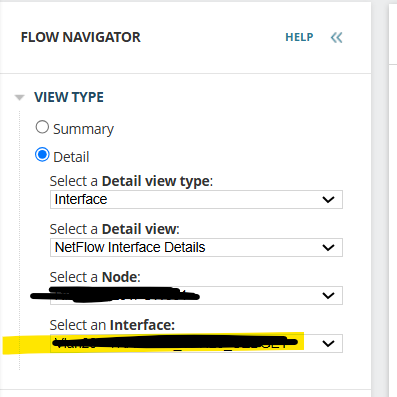

Does anyone configure single widget to view the NTA Traffic for multiple interfaces like (vlan 10,20,gi0/0/1 etc..) in a device, it would be good to know if anyone able to achieve it. currently in the flow navigator able to filter one interface at a time.

stibi

Hi @Sriram_1 ,

This should be possible to do and you have two options how to do it.

Option 1:
Clone NTA Summary View (you can use Flow Navigator for that) and on that new view specify view limitation that would limit data just for interfaces you want. This has benefit that you can use many resources on that view and don't need to create your own.

Option 2:
There are "Custom Table" and "Custom Chart" Widgets  that you could use. When you edit those resources you can select Datasource, there you would choose interface and filter out interfaces you are interested in. In the selection of columns you can then select Flows based entities and related columns you want to see.
You can use SWQL query to get the data. You can even directly catch the query from our default resources to get inspired how they are constructed. How to catch those queries is described here: How do I make a Custom Widget that monitors Net-flow enabled interfaces on targeted devices?

Hope this helps.
