Network Topology Tips?

Redwolf32002001

Is there a standard, or a set of best practices for drawing network topologies? I'm looking for tips and tricks to create a network topology that is clear and easy to understand at a glance. Although I've used SolarWinds extensively, I've never created a Network Atlas Map and need to revamp the current one, which is quite confusing and disorganized.

Find more posts tagged with

Tips and Tricks

network_monitoring

standards

atlas maps

atlas

question

noob

Accepted answers

HerrDoktor

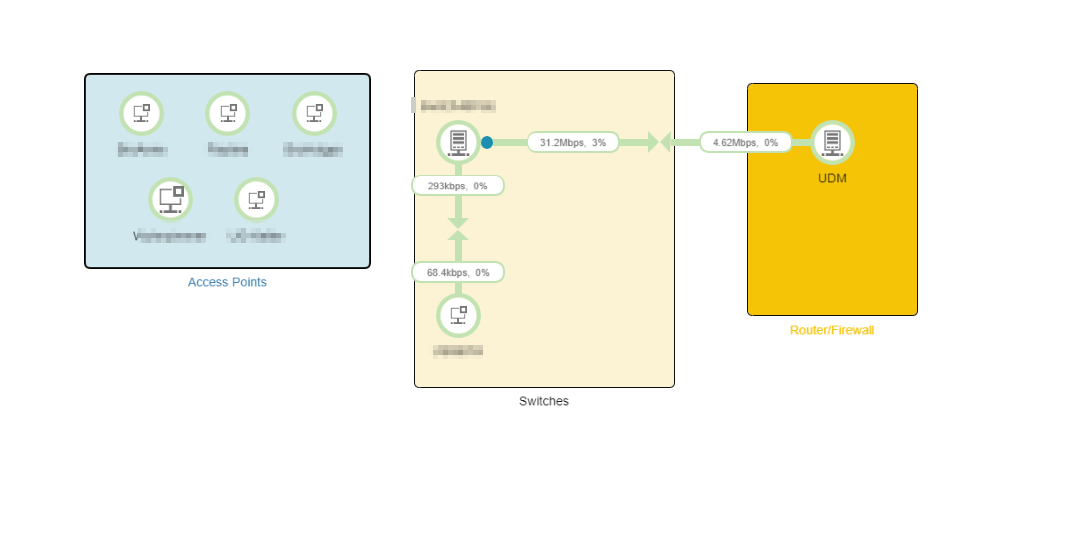

Here's an example:

Both Maps have the same devices on them but grouped totally differently. One map is by device type, the other one is by physical location.

All comments

HerrDoktor

Network Atlas Deprecation Reminder

you might want to look at creating it fresh with „orion/intelligent Maps“

other than that, it really depends on the nature of the map. Upload a nice background and place the elements accordingly. Or draw „boxes“ around logically grouped devices.
there is no „best practice“ really as maps/visualization is something really „personal choice“

Redwolf32002001

Thank you!

HerrDoktor

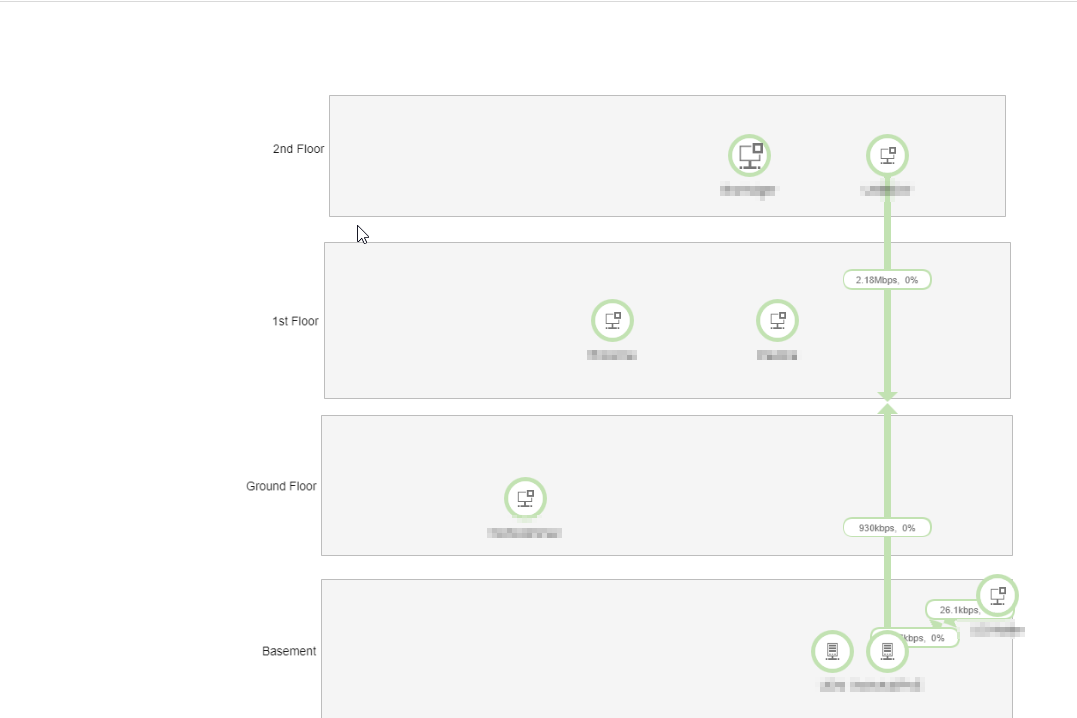

Here's an example:

Both Maps have the same devices on them but grouped totally differently. One map is by device type, the other one is by physical location.

Redwolf32002001

Thanks for the examples, been playing around with maps all day now.
