Filter out an IP address group from Top 5 Conversations resource

psiess

I use the Top 5 Conversations resource on my dashboard.  I want to filter out traffic from the view that is the member of an IP address group.

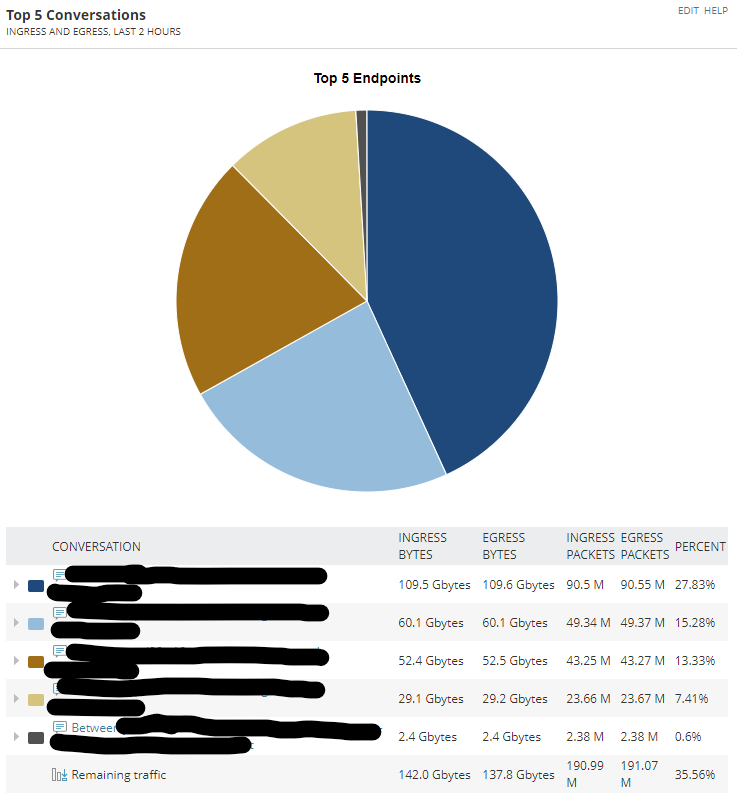

The screenshot below shows the graph.  The first 4 entries in the list are from a node that I want to filter out.

Can that be done?

stibi

Hi @psiess,

In NTA pages on the left side of the page is expandable Flow Navigator. It is possible to exclude Endpoints, specific conversations or IP Address Groups in it. Just small note here is that changes to IP Address Groups are to applied to historical data, so if you will create IP Address Group and immediately try to filter traffic out based on it will not work. Only data processed after the IP Address Group creation will be affected.

If I would like to exclude whole node[s], then I would probably try to use limitations like define group of nodes or add custom property to them and then I would apply it as view limitation.
