SWQL query to get AvgRate value displayed as a chart

Hi,

I am looking for your kind support to develop an SWQL query to get AvgRate value displayed as a chart with historical data.

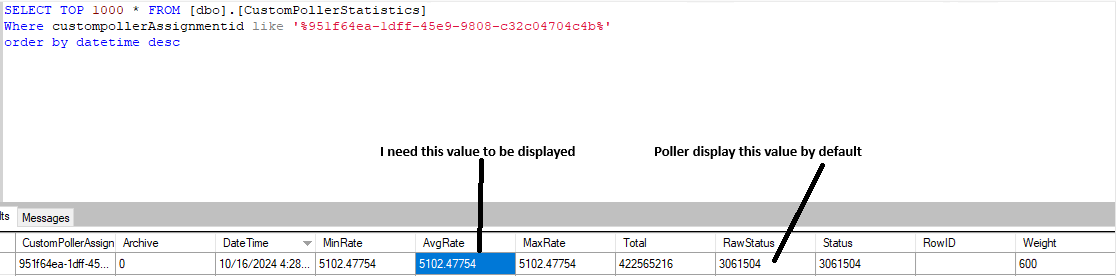

I already have a custom poller which is displaying default total value as shown in the screenshot but I need AvgRate value which is already available in DB.

Thanks

Shahzad

Find more posts tagged with

swql query

custom pollers

Custom Query

custom poller

Accepted answers

sayub76

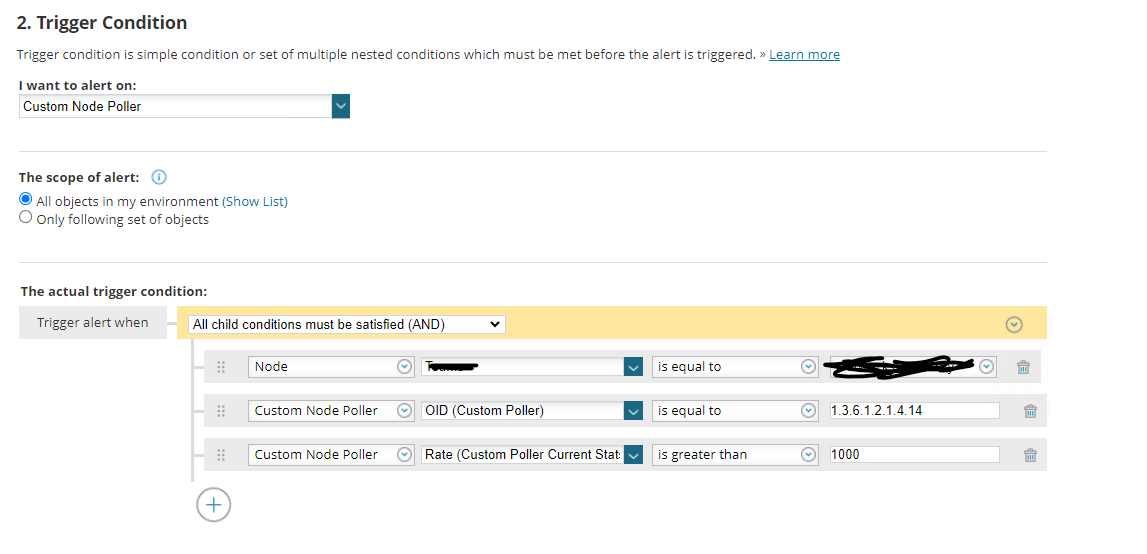

Just to update you, am able to trigger the alert using the rate threshold but still am searching a way to create chart graph for AvgRate.

sayub76

Thank you all, am able to achieve chart requirements using reports.

Added custom chart and selected the custom poller, then edit chart & chose AvgRate which was available there.

looks quite simple at the end

All comments

sayub76

*Correction: poller displays Total value by default

Sriram_1

select cps.avgrate,cps.description from orion.NPM.CustomPollerStatistics as cps where cps.datetime<=getutcdate()-15

Above query will give the results in tabular format for last 15 days.

Sriram_1

if needed in report change format to tabular to chart.

sayub76

Thanks for your support, I’ll check and update you.

Is it possible to make custom poller by default to display AvgRate instead of Total because it’s a counter OID?

Actually, I want to assign this poller to all the applicable nodes and then to create an alert based on specific threshold but am not sure if it’s possible.

Thanks in advance.

jjhj

In SolarWinds, it is possible to create a custom poller to display AvgRate instead of Total for OID counters, but it’s not done by default. You will need to customize how the data is handled. Here's a step-by-step guide to achieve this:

1. Create a Custom Poller

To have SolarWinds correctly interpret OID counters, you need to configure the poller to calculate the AvgRate rather than simply showing the Total. Follow these steps:

Go to Settings > Manage Pollers > Create New Poller.
Select the OID you want to use. Make sure it’s an OID that returns data in a counter (Counter) format.
When defining the data type, select the option to calculate the rate instead of the total value.
Define the formula you want to use to calculate the AvgRate. Typically, you will use the difference between two counter readings divided by the elapsed time.

2. Assign the Poller to Nodes

Once the custom poller is created, you can assign it to multiple nodes in bulk:

Go to Manage Nodes and select the nodes you want to apply the poller to.
Apply the custom poller you just created to those nodes.

3. Create an Alert Based on a Specific Threshold

Now that you've applied the custom poller, you can set up an alert based on the AvgRate threshold:

Go to Alerts & Activity > Manage Alerts and create a new alert.
Define a condition based on the AvgRate value you configured.
Set up the alert threshold as needed (for example, if the AvgRate exceeds a certain value over a specific time period).

Additional Considerations:

OID counters can increment indefinitely until they reset, so it's important that the rate calculation is properly set.
The custom poller functionality allows you to adjust the collection and processing of data, so you can fine-tune the frequency and calculation method depending on performance and monitoring needs.

Summary

Yes, it’s possible to create a custom poller in SolarWinds to display AvgRate instead of Total using OID counters, and you can apply this poller to multiple nodes, then create an alert based on defined thresholds.

If you have any further questions or need more specific details, feel free to ask!

Sriram_1

I believe you are pulling the table vaures using Custom poller, if yes check for OID gives avg value and poll it only, if not I would suggest since it is coming in the Database as avg value, write a swql alert based on thresold.
