Interactive KPI Dashboard

Hello Guys,

Wanted to know How to link multiple widgets together to achieve interactive KPI dashboards in modern SolarWinds dashboard, for example I have a list of node down table widget and wanted to link this widget to KPI widget having count of node down number so that I can make the widget interactive. I saw the interactive KPI widgets but missing the logic how can achieve it. Do we have any articles or KBs.

Find more posts tagged with

Accepted answers

All comments

adam.beedell

Not completely sure what you're after, but it's probably a combination of a few of these:

- Generating Links, and applying those to the formatter

- Generating Links which have filters or other dynamic things applied to them

- Wait a patch or two for the drilldown widget, else there's a couple good writeups on here for the current version

So you mention having a list of nodes down, and then you click those and it shows a count

I guess you could do

- Add a column to your list datasource, that generates a URL, in this case you could maybe link to a static report ", 'https://orion/...dashboard/99'; as linkcollumn" which shows a count of node down, or like the same thing with a filter calculated of some sort.

- Add that to the behaviour formatter or whatever it's called

Sriram_1

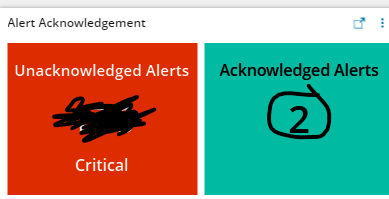

Thankyou for your reply I am looking for an interactive modern dashboard wherein I wanted to click on the view and it has to take me to associated view. like if I click on the acknowledge alerts it has to show me the acknowledge alerts list in another widget.

adam.beedell

Step 1: Make the thing it links to

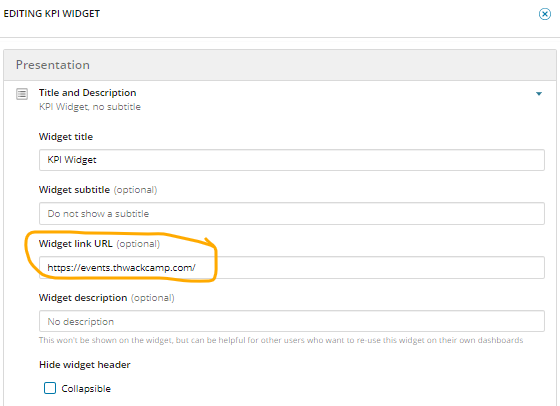

Step 2: Place the URL here

Sriram_1

I tried it but widget is not interactive and upon clicking on it , is it working fine for you?

tobyw_loop1

Have a read through this post - it gives a good overview into what you're looking to do. thwack.solarwinds.com/.../all-in-on-modern-dashboards

Sriram_1

Thanks for sharing , I have created below custom query , added to KPI widget but when I am clicking on it it doesn't helping me to land on different page where I have created a table widget having all devices with status,am I missing something .. does any modifications needed

SELECT N.TheCount
, CASE WHEN D.Link is null then NULL
ELSE CONCAT(D.Link,'?filters=', d.InstanceSiteId, '_Orion.Nodes_Status:eq:2')
END AS Link
FROM
(SELECT COUNT(1) as TheCount FROM Orion.Nodes WHERE Category=1 AND Status = 2) N
LEFT JOIN
(
SELECT TOP 1 InstanceSiteId, '/apps/platform/dashboard/' + TOSTRING(DashboardID) as Link
FROM Orion.Dashboards.Instances
WHERE DisplayName='node_staus test'
ORDER BY DashboardID
) D ON 1=1
