Classic Dashboard with Disk Volumes Widget

shocko

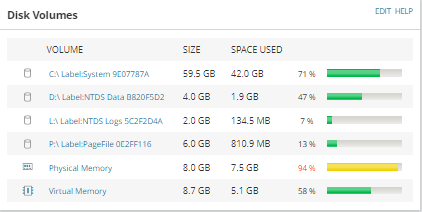

I wish to create a simple classic dashbiard to show 5 servers and the disk volumes Widget for each server i.e. the following widget that's show on the Server Details built-in view:

I feel this should be straight forward but I cannot figure out how to do this!

weston.hood

Two ways.

Custom Object Resource - Add the custom object resource to the page. Edit it and pick Object Type: node. You can only choose 1 node though otherwise, you can't choose the resource you pasted an image of. In the Object resource drop-down choose Disk Volumes. So you would have to create/configure 5 of these Custom object resources for the 5 servers.

All Volumes Resource - add the "all volumes" resource to the page, hit edit on the upper right corner. You can filter to fixed disk via SQL (if you want). You can also filter to specific servers by their name. I put the correct query below. You would obviously have to replace the server names with their actual captions, it does support wildcards.

(Nodes.Caption Like 'server1' OR Nodes.caption Like 'server2' OR Nodes.caption Like 'server3' OR Nodes.caption Like 'server4' OR Nodes.caption Like 'server5') AND VolumeType = 'Fixed Disk'

I know this resource drops the integer metrics. You could also easily script this but you'd drop the visual bar for % used.
