UnDP Tranform results from numbers to human readable

I am polling a GEIST PDU for the state of the Outlets (OID Name: pduOutletSwitchState / MIB 1.3.6.1.4.1.21239.5.2.3.5.1.4) and it returned with numeric values: 1,2,3,4,5

You are supposed to just know that:

"Switch state of the outlet:
1 = Outlet is on,
2 = Outlet is off,
3 = Outlet is on, but will turn off after a delay,
4 = Outlet is off, but will turn on after a delay,
5 = Starting reboot cycle, outlet is on, but will go to the rebootOFF"

Is it possible to transform the numeric values into a more human readable result?

Thanks,

Amber

Find more posts tagged with

transform_results

transform

UnDP

undp_universal_device_poller

Accepted answers

All comments

AmberTBrown

I figured it out, instead of transforming the output, I just needed to format the output as Operational Status.

shuth

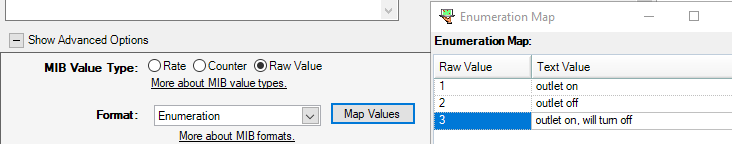

You can also change the custom poller in the UnDP tool to enumerate the values under the Advanced Options.

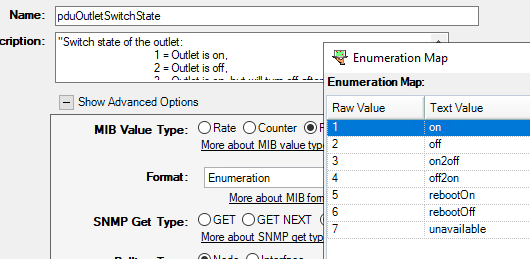

Edit: Looks like that OID already has the values listed but you need to change the format from None to Enumeration.
