Custom device template creation

daham_bm

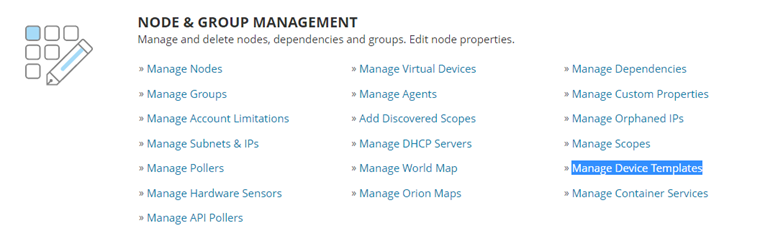

Step 1:  Settings > All Settings > Manage Device templates

Step 2:  Identify the closest device model which can be used as the baseline template

Eg: Cisco FXOS node can be based on the IOS

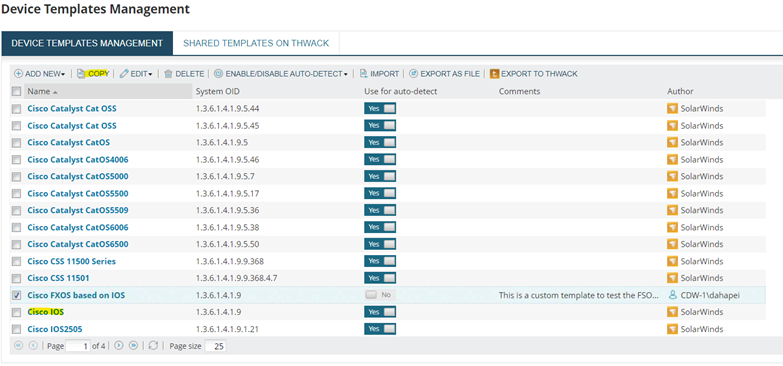

Click ‘Copy’

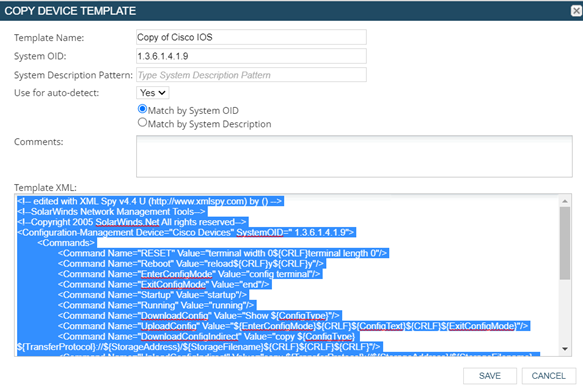

Step 3:  Enter a proper Template name

Step 4:  Identify the areas on the template to update

Eg: configuration backup commands/ Version check command / save configuration command

IOS template

<!-- edited with XML Spy v4.4 U (http://www.xmlspy.com) by () -->e

<!--SolarWinds Network Management Tools-->

<!--Copyright 2005 SolarWinds.Net All rights reserved-->

<Configuration-Management Device="Cisco Devices" SystemOID=" 1.3.6.1.4.1.9">

               <Commands>

                              <Command Name="RESET" Value="terminal width 0${CRLF}terminal length 0"/>

                              <Command Name="Reboot" Value="reload${CRLF}y${CRLF}y"/>

                              <Command Name="EnterConfigMode" Value="config terminal"/>

                              <Command Name="ExitConfigMode" Value="end"/>

                              <Command Name="Startup" Value="startup"/>

                              <Command Name="Running" Value="running"/>

                              <Command Name="DownloadConfig" Value="Show ${ConfigType}"/>

                              <Command Name="UploadConfig" Value="${EnterConfigMode}${CRLF}${ConfigText}${CRLF}${ExitConfigMode}"/>

                              <Command Name="DownloadConfigIndirect" Value="copy ${ConfigType} ${TransferProtocol}://${StorageAddress}/${StorageFilename}${CRLF}${CRLF}${CRLF}"/>

                              <Command Name="UploadConfigIndirect" Value="copy ${TransferProtocol}://${StorageAddress}/${StorageFilename}  ${ConfigType}${CRLF}${CRLF}"/>

                              <Command Name="DownloadConfigIndirectSCP" Value="copy ${ConfigType} ${TransferProtocol}://${SCPServerUserName}@${SCPStorageAddress}/${StorageFilename}${CRLF}${CRLF}${CRLF}${CRLF}${SCPServerPassword}&quot;/>

                              <Command Name="UploadConfigIndirectSCP" Value="copy ${TransferProtocol}://${SCPServerUserName}@${SCPStorageAddress}/${StorageFilename} ${ConfigType}${CRLF}${CRLF}${SCPServerPassword}"/>

                              <Command Name="EraseConfig" Value="write erase${CRLF}Y"/>

                              <Command Name="SaveConfig" Value="write memory"/>

                              <Command Name="Version" Value="show version"/>

                              <Command Name="Disconnect" Value="exit"/>

               </Commands>

</Configuration-Management>



In the template, command name is used to identify the command and the value is the actual command

Eg: Downloading running config command will be completed in TWO commands

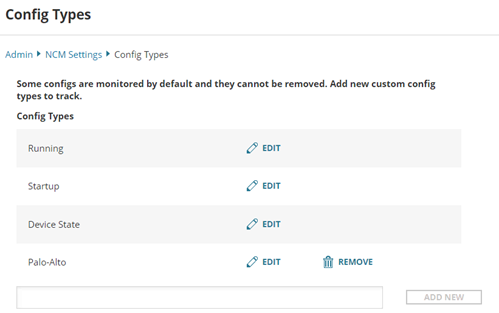

${ConfigType} is the variable which contains the configuration types configured in the NCM settings > ‘Configs Types’



<Command Name="Running" Value="running"/>

<Command Name="DownloadConfig" Value="Show ${ConfigType}"/>

Command

Command	Value
DownloadConfig	Show + {the value in the config type}
Running	Running



Complete command should look like

Download running config > Show Running



On the FXOS downloading the configuration command should be like

Show Configuration



Template snippet



<Command Name="Startup" Value="CONFIGURATION"/>

<Command Name="Running" Value="CONFIGURATION"/>

<Command Name="DownloadConfig" Value="Show ${ConfigType}"/>



Hence, regardless the running or startup configs the command built in the NCM will be

 ‘Show Configuration’
