Adding a volume via swis powershell

Hoping I can get some insight on an issue I am running in to. I am using powershell and the swis module to automate several tasks in regards to creating a new node. Everything seems to work properly for me, however despite me adding a new volume (fixed disk), it doesn't automatically check that box under "List Resources"

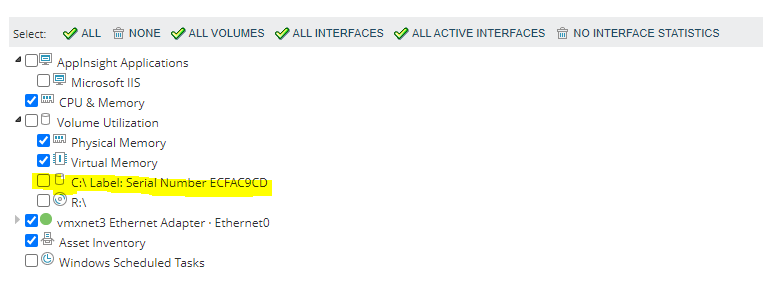

I know I can do a full network discovery on the node, but this is extremely resource heavy and at the end of the discovery it notifies the entire dept of the change. It's a bit unnecessary and as I mentioned too demanding to just check that box. However if I deploy 20+ virtual machines and then use my script to add the new nodes into Solarwinds, I'd really like for that drive to be checked under "List Resources". The other devices (physical & virtual memory) get checked automatically so I'm not sure what's preventing the volume from being checked.

Here is the code block for how I am adding the volume

#================ Hard Drive Monitoring

#Get drive Info from the server directly
$Drives = Get-CimInstance -ComputerName $node -ClassName Win32_LogicalDisk -Property * | Where-Object { $_.VolumeSerialNumber -ne $NULL }

$VolumeIndex = 3

#Set the properties of our new volume(s) based on the information from above
foreach ($Drive in $Drives)
{
    $PhysicalDrive = @{
        NodeID = $CheckNode
        VolumeType = "Fixed Disk"
        DeviceId = $Drive.DeviceID
        VolumeTypeID = "4"
        Icon = "FixedDisk.gif"
        NextRediscovery = (Get-Date (Get-Date -Format "MM.dd.yyy h:mm:ss tt")).AddSeconds(30)
        nextpoll = (Get-Date (Get-Date -Format "MM.dd.yyy h:mm:ss tt")).AddSeconds(30)
        VolumeIndex = [Int]$VolumeIndex
        Caption = $Drive.DeviceID + "\ Label: " + $Drive.VolumeName + $Drive.VolumeSerialNumber
        VolumeDescription = $Drive.DeviceID + "\ Label: " + $Drive.VolumeName + "Serial Number " + $Drive.VolumeSerialNumber
        FullName = $Drive.PSComputerName + "-" + $Drive.DeviceID + "\ Label: " + $Drive.VolumeName + $Drive.VolumeSerialNumber
        PollInterval="120"
        StatCollection="15"
        RediscoveryInterval="30"
    }

    #Create new object with properties from above
    $NewPhysicalDriveURI = New-swisobject $swis -EntityType "Orion.volumes" -properties $PhysicalDrive

    #Get new URI Properties
    $PhysicalDriveProps = Get-SwisObject $swis -uri $NewPhysicalDriveURI

    #Register Pollers
    $PhysicalDrivePoller = @{
        NetObject = "V:" + $PhysicalDriveProps["VolumeID"]
        NetObjectType = "V"
        NetObjectID = $PhysicalDriveProps["VolumeID"]
    };

    #Details
    $PhysicalDrivePoller["PollerType"] = "V.Details.WMI.Windows";
    $PhysicalDriveURI = New-SwisObject $swis -EntityType "Orion.Pollers" -Properties $PhysicalDrivePoller

    #Statistics
    $PhysicalDrivePoller["PollerType"] = "V.Statistics.WMI.Windows";
    $PhysicalDriveURI = New-SwisObject $swis -EntityType "Orion.Pollers" -Properties $PhysicalDrivePoller

    #Status
    $PhysicalDrivePoller["PollerType"] = "V.Status.WMI.Windows";
    $PhysicalDriveURI = New-SwisObject $swis -EntityType "Orion.Pollers" -Properties $PhysicalDrivePoller

    #Poll changes
    Invoke-SwisVerb $Swis "Orion.Nodes" PollNow @("V:" + $PhysicalDriveProps["VolumeID"])

    #Increment the volume index if we have multiple fixed drives
    $VolumeIndex = $VolumeIndex + 1
}

Find more posts tagged with

SwisPowerShell

swis

volumes

volume

SWQL

swis sdk

PowerShell

swis powershell

orion sdk

Accepted answers

sum_giais

Did you try adjusting these variables inside your $PhysicalDriveProps variable to below?

Caption = $Drive.DeviceID + "\ Label:" + $Drive.VolumeName + " " + $Drive.VolumeSerialNumber.ToLower()
VolumeDescription = $Drive.DeviceID + "\ Label:" + $Drive.VolumeName + "  Serial Number " + $Drive.VolumeSerialNumber.ToLower()
FullName = $Drive.PSComputerName + "-" + $Drive.DeviceID + "\ Label: " + $Drive.VolumeName + $Drive.VolumeSerialNumber.ToLower()

All comments

sum_giais

I was able to see this behavior as well with using your method to add a volume to a node, and got it working by changing the "VolumeIndex" to 1. What I don't understand is exactly what affect that may have, as there's both a "VolumeIndex" field and an "Index" field. Potentially they're the same data and just ones an older property name.

That said, I was testing on a node with no volumes being monitored. Perhaps there's some logic around this to be required in various scenarios.

Also you may want to look to add .ToUniversalTime() to the end of lines 17 and 18, the variables for NextPoll and NextRediscovery, as the DB will expect UTC.

Hope this helps.

_Fender84

Thank you for replying. I tried changing that value and re-adding the volume, but unfortunately that change didn't make any difference. I'm trying to navigate and look at different values within our Solarwinds server using the Database Manager tool as well as SWQL to see if I can spot anything. So far unfortunately no luck. I'm open to any other suggestions.

Let me ask a different question, but similar to this topic... is there a way to preconfigure a "template" that every new server build follows the same guidelines outside of some minor changes such as IP, servername, etc. If I were to add a server node manually we follow the same "configuration" rinse & repeat, so if there is a way to preconfigure the template to always select the options I have in my post above (including the volume) that's another option for me.

Here is a copy of the changes I made

foreach ($Drive in $Drives)
{
    $PhysicalDriveProps = @{
        NodeID = $NodeID
        Icon = "FixedDisk.gif"
        Index = 1
        VolumeIndex = 1
        Caption = $Drive.DeviceID + "\ Label: " + $Drive.VolumeName + $Drive.VolumeSerialNumber
        VolumeType = "Fixed Disk"
        Size = $SourceVolume.Size
        Responding = $SourceVolume.Responding
        FullName = $Drive.PSComputerName + "-" + $Drive.DeviceID + "\ Label: " + $Drive.VolumeName + $Drive.VolumeSerialNumber
        VolumePercentUsed = $SourceVolume.VolumePercentUsed
        VolumeAllocationFailuresThisHour = $SourceVolume.VolumeAllocationFailuresThisHour
        VolumeDescription = $Drive.DeviceID + "\ Label: " + $Drive.VolumeName + "Serial Number " + $Drive.VolumeSerialNumber
        VolumeSpaceUsed = $SourceVolume.VolumeSpaceUsed
        VolumeAllocationFailuresToday = $SourceVolume.VolumeAllocationFailuresToday
        VolumeSpaceAvailable = $SourceVolume.VolumeSpaceAvailable
        VolumeTypeID = "4"
        DeviceId = $Drive.DeviceID
        NextRediscovery = (Get-Date (Get-Date -Format "MM.dd.yyy h:mm:ss tt")).AddSeconds(30).ToUniversalTime()
        nextpoll = (Get-Date (Get-Date -Format "MM.dd.yyy h:mm:ss tt")).AddSeconds(30).ToUniversalTime()
        PollInterval="120"
        StatCollection="15"
        RediscoveryInterval="30"
    }

    #Create new object with properties from above
    $NewPhysicalDriveURI = New-swisobject $swis -EntityType "Orion.volumes" -properties $PhysicalDriveProps

    #Get new URI Properties
    $NewPhysicalDriveProps = Get-SwisObject $swis -uri $NewPhysicalDriveURI

    foreach ($volPollerType in $SourceVolPollerTypes)
    {
        $volPoller = @{
            PollerType = "$volPollerType";
            NetObject = "V:"+$NewPhysicalDriveProps.VolumeID;
            NetObjectType = "V";
            NetObjectID = $NewPhysicalDriveProps.VolumeID;
        }

        New-SwisObject $swis -EntityType "Orion.Pollers" -Properties $volPoller | Out-Null
    }

    #Poll changes
    Invoke-SwisVerb $Swis "Orion.Nodes" PollNow @("V:" + $NewPhysicalDriveProps["VolumeID"])
}

Thank you!

mesverrum

So I looked at my lab and the volumeIndex and Index are always the same in my environment, but it doesn't look like you can get away with just hard coding it as 1. In my environment Index 1 for windows servers always appears to be RAM, 2 is Virtual Memory, and the C: drive is usually 3 or 4, but even in my small lab it was not always true so I would not be willing to chance it and just randomly guess at this if I was setting this kind of workflow up in my environment.

Getting to your question about setting up templates, I've talking to various SW PM's over the years about wanting to get this idea in the product natively but it hasnt made the cut yet. In the mean time I just settled on building that logic on my own with a combination of Powershell and SQL. I had scripts that build complete discoveries every day against all currently monitored nodes. The discovery job had some limited amount of filtering that I was able to implement directly in the discovery, but it wasnt really good enough for a variety of reasons so I added an extra step where it would rip through the discovery results tables and remove anything we didnt want imported. Once that was done it would execute the command to import anything that's left over. It was a pretty tedious process of trial and error to get it all working but eventually I got it all dialed in and working pretty much on auto pilot for my previous job with ~10k nodes in the environment. I'd automatically bring known objects in from GCP/AWS/CMDB so the monitoring stayed pretty current to what was deployed

_Fender84

Yes, in our environment it's the same. 1 = physical memory, 2 = virtual memory, and 3+ = fixed disk (depending on how many drives the server has)

You wouldn't by chance still have any of those scripts handy and willing to share would you? I pretty have everything automated the way I like, just this volume checkbox is the only thing holding me back. I thought at 1 point it was working fine for me, but then I noticed it isn't working anymore and I don't think anything changed in our environment.

EDIT: I made a similar post a few months ago here: Requesting assistance with adding volume via swispowershell

The last post I made in the link above, I thought it was basically working well and the volumes were good, but I don't think my current code is much different and for some reason the volumes aren't being listed in resources.

sum_giais

Look into PSCustomObjects in PowerShell - https://learn.microsoft.com/en-us/powershell/module/microsoft.powershell.core/about/about_pscustomobject?view=powershell-7.3 and/or switches - https://learn.microsoft.com/en-us/powershell/module/microsoft.powershell.core/about/about_switch?view=powershell-7.3. You could create a PSCustomObject with all the predefined data for each, and use a switch to tell it which one to use depending on your condition.

For the prior issue of it not showing in list resources, try changing your volumeindex to 1 and the below adjustments, it could potentially be comparing the end result of "mashed" data together, and it's not the same, so I looked at the formatting of the volumes when I added them through the UI, and this appears to match it.

It appears to work for me now.

Caption = $Drive.DeviceID + "\ Label:" + $Drive.VolumeName + " " + $Drive.VolumeSerialNumber.ToLower()
VolumeDescription = $Drive.DeviceID + "\ Label:" + $Drive.VolumeName + "  Serial Number " + $Drive.VolumeSerialNumber.ToLower()
FullName = $Drive.PSComputerName + "-" + $Drive.DeviceID + "\ Label: " + $Drive.VolumeName + $Drive.VolumeSerialNumber.ToLower()

Also these properties are redundant amongst them and only need to define one of them in each:

[Index, VolumeIndex]

[Description, Type, VolumeType]

sum_giais

I noticed exactly the same, most C: drives were volumeindex 3. But some were 1 and just couldn't make heads or tails of it to understand why. That's the "Magic sauce"...
