UnDP for Cisco ASA Connections and CPU Utilization.
Polls below OIDs for:

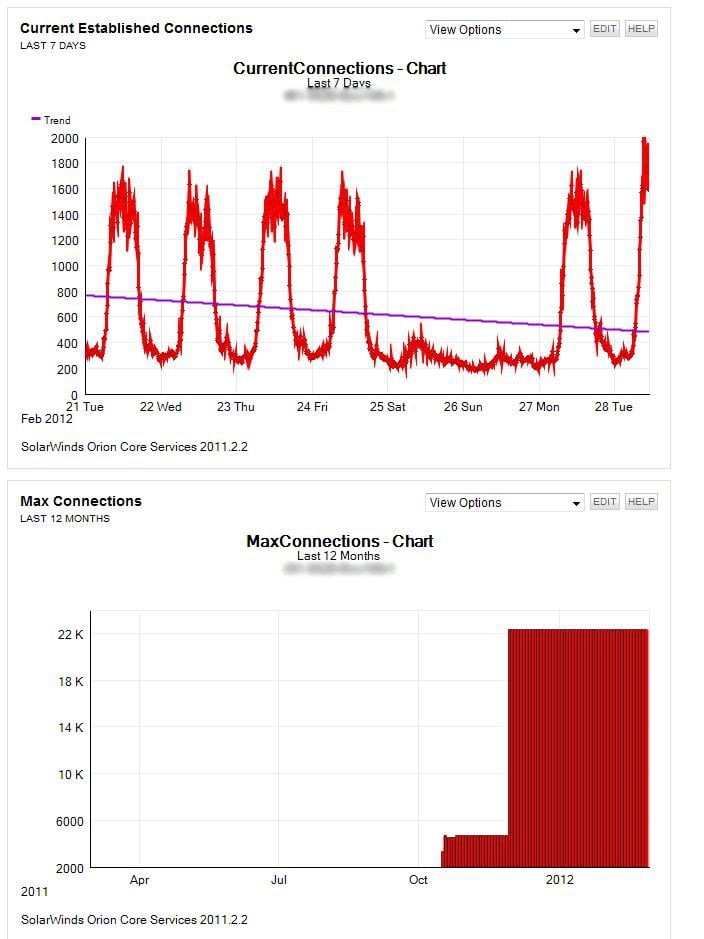

- Current total connections
- Max total connections
- Connections per second over the last 60 seconds
- Connections per second over the last 300 seconds
- CPU Utililzation over the last 5 seconds
- CPU Utilization over the last 60 seconds
CISCO-FIREWALL-MIB:ciscoFirewallMIB
1.3.6.1.4.1.9.9.147.1.2.2.2.1
CISCO-UNIFIED-FIREWALL-MIB
cufwConnGlobalConnSetupRate1.0 - 1.3.6.1.4.1.9.9.491.1.1.1.10
cufwConnGlobalConnSetupRate5.0 - 1.3.6.1.4.1.9.9.491.1.1.1.11
Reference Cisco Community document, "SNMP MIBs and Traps on the ASA", for a detailed list of supported MIBS on the Cisco ASA.
https://supportforums.cisco.com/docs/DOC-1295#Connection_Information
