Remote Ping for Fortinet network devices.
Template is based on PowerShell (running locally on SolarWinds server) and is connecting via SSH Terminal, in order to execute Ping command.
[embed:21a47d5d-b4f2-4ba8-83b4-14d0c9184868:6627040f-d844-46e9-9651-4cc51d67686e:embedCode=%3Ciframe%20width%3D%22560%22%20height%3D%22315%22%20src%3D%22https%3A%2F%2Fwww.youtube.com%2Fembed%2F_1hAFBIinok%3Fsi%3DWZau28FHps87-s4U%22%20title%3D%22YouTube%20video%20player%22%20frameborder%3D%220%22%20allow%3D%22accelerometer%3B%20autoplay%3B%20clipboard-write%3B%20encrypted-media%3B%20gyroscope%3B%20picture-in-picture%3B%20web-share%22%20referrerpolicy%3D%22strict-origin-when-cross-origin%22%20allowfullscreen%3E%3C%2Fiframe%3E&sanitizedEmbedCode=%3Ciframe%20src%3D%22https%3A%2F%2Fwww.youtube.com%2Fembed%2F_1hAFBIinok%3Fsi%3DWZau28FHps87-s4U%22%20width%3D%22560%22%20height%3D%22315%22%20title%3D%22YouTube%20video%20player%22%20frameborder%3D%220%22%20allow%3D%22accelerometer%3B%20autoplay%3B%20clipboard-write%3B%20encrypted-media%3B%20gyroscope%3B%20picture-in-picture%22%20allowfullscreen%3E%3C%2Fiframe%3E&autoResize=False]
Posh-SSH module is required:
https://www.powershellgallery.com/packages/Posh-SSH/
Command for installing Posh-SSH on servers with Internet access:
Install-Module -Name Posh-SSH
Example for terminal output:
Router1 # config vdom
Router1 (vdom) # edit root
current vf=root:0
Router1 (root) # execute ping 8.8.8.8
PING 8.8.8.8 (8.8.8.8): 56 data bytes
64 bytes from 8.8.8.8: icmp_seq=0 ttl=114 time=14.6 ms
64 bytes from 8.8.8.8: icmp_seq=1 ttl=114 time=14.6 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=114 time=14.7 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=114 time=15.0 ms
64 bytes from 8.8.8.8: icmp_seq=4 ttl=114 time=14.7 ms
--- 8.8.8.8 ping statistics ---
5 packets transmitted, 5 packets received, 0% packet loss
round-trip min/avg/max = 14.6/14.7/15.0 ms
Router1 (root) #

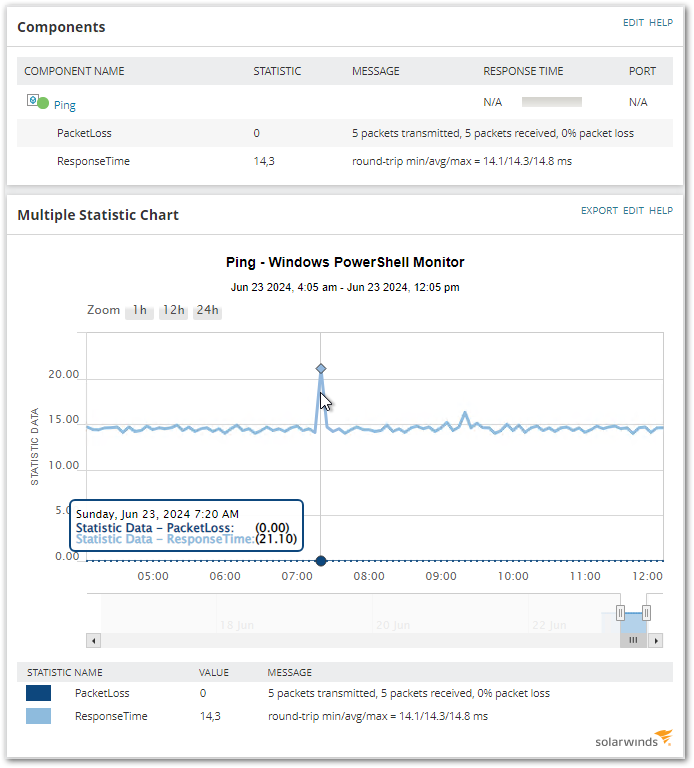

Final result in SolarWinds:
Take care, Marcin.
